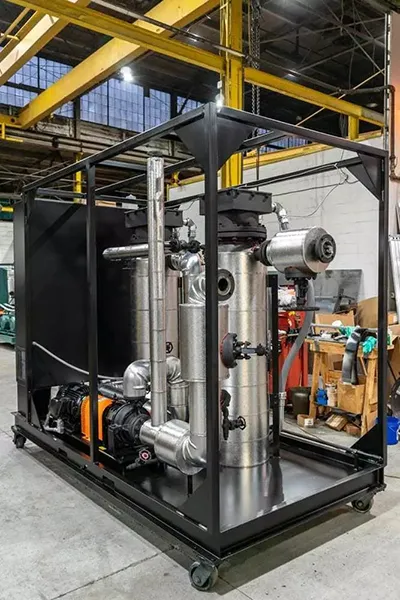

SL Series of Custom Engineered
SL SERIES: CUSTOM ENGINEERED ELECTRIC HOT OIL SYSTEMS
The SL Series of Custom Engineered, Thermal Fluid Electric Hot Oil System delivers the Safe Reliable Performance HEAT is known for in a packaged system that is precisely engineered to your process.
Our engineering team will work with you to design a system based on a specific and unique process or application. SL Series systems typically include a Circulating Pump, Electric Heater, Expansion Tank, Cooling circuit, and Control Panel. Design capability for maximum operating temperatures up to 750°F.
SL Series systems are constructed with either Carbon Steel or Stainless-Steel wetted materials, insulated with Non-Wicking Cellular Glass Insulation, and packaged, skid-wired, and assembled on a drip-proof, seal-welded plate-and-channel fluid containment base.
HEAT offers four distinct levels of customization, ranging from minimal customization to fully built-to-specification designs. Each unique system undergoes a Factory Acceptance Test in accordance with HEAT standard practice prior to shipment.
GENERAL SPECIFICATIONS
- Maximum Operating Temperatures up to 750°F
- Heating Capacities from 20kW to 600kW and Higher
- Up to 600 VAC, 3-Phase, 50/60Hz Power Capabilities
- General Purpose and Hazardous Area Designs
- Designs Temperatures of 550°F, 600°F, 650°F and 750°F
GENERAL FEATURES
- 4 Levels of Customization
- Indoor/Outdoor installation
- Heat Only & Heat/Cool Designs Available
- Fluid Maintenance & Sampling Ports
- Seller standard or Custom Paint Colors
