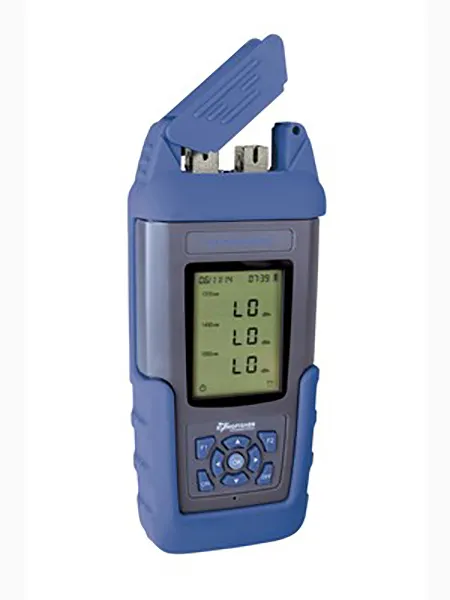

GPON or PON Power Meter KI 6102

GPON / PON Power Meter KI 6102

An in-line PON meter is used during FTTH / PON service turn-up or maintenance, to perform a live optical power test with OLT equipment.

Easy to use, compact, rugged & economical true PON / GPON tester
Fast reading and settling time
Sunlight readable backlit display
Pass / fail display and LEDs
1310 nm upstream, 1490/1550 nm downstream
18 hr from AA alkaline batteries & auto off
100 test memory & real time clock
PC software for downloading results & setting pass / fail
1 year warranty, 3 year calibration cycle
Full QA report with ISO9001 compliant calibration

Note: This instrument is designed to test PON transmission power. Alternatively, loss testing use requires a non-standard KI2000 series test source with specific CWDM compliant lasers.

General KI 6102 GPON / PON Power Meter specifications

Detector type	InGaAs
Passband	Upstream: 1310 nm (FWHM: 1260 ~ 1360), Downstream: 1490 nm (FWHM: 1470 ~ 1505) & 1550 nm (FWHM: 1535 ~ 1570)
Power range	-40 ~ +10 dBm (@ 1310 nm) / -45~ +10 dBm (@ 1490 nm) / -45 ~ +23 dBm (@ 1550 nm)
Damage level (dBm)	+10 dBm (@ 1310 nm) / +10 dBm (@ 1490 nm) / +23 dBm (@ 1550 nm)
Isolation between wavelengths	> 40 dB
Uncertainty	0.5 dB (max)
Linearity	0.1 dB
Polarization loss	< 0.25 dB
Insertion Loss	< 1.5 dB
Return loss	50 dB
Display size	44 mm x 57 mm
Show results	dBm / W / dB, pass / fail
Display resolution	0.01 dB
Auto off	Selectable
Memory	99 records of 3-wavelength test
Data software	via USB-mini
Battery	4x AA (LR6) Alkaline
Battery life	18 hours
Operating / storage temperature	-10 ~ +60 °C / -25 ~ +70 °C
Relative humidity	95%
Unit size	200 mm x 90 mm x 43 mm
Unit weight	0.4 kg
Shipment weight	1 kg
Calibration validity	3 years
Warranty	1 year
