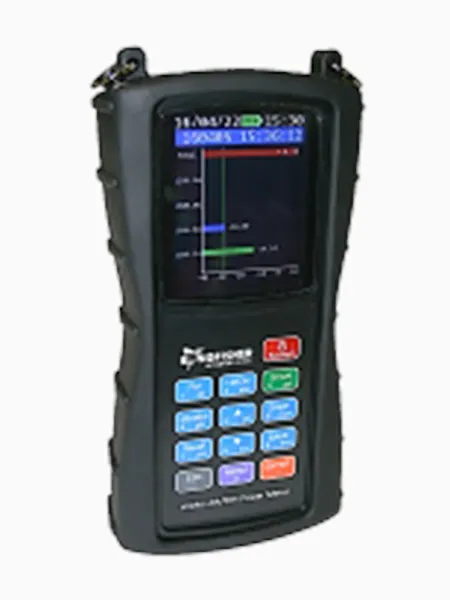

LR4/ER4 Channel Power Meter KI 6512
KI6512 is an easy and economical handheld 100GBASE LR4/ER4 λ selective power meter for single mode fiber.
An extra 50/125u port provides basic 850 / 1300 / 1550 nm power testing and is handy for first-in fault finding.
It scans & stores the absolute power or loss of all 4 channels in 0.8 seconds, with results viewed in graphical or numerical form.
General KI 6512 LR4/ER4 Channel Power Meter specifications
Calibrated λ of LR4/ER4 port
1295.56 nm (min:1294.53 nm, max:1296.59 nm) / 1300.05 nm (min:1299.02 nm, max:1301.09 nm) / 1304.58 nm (min:1303.54 nm, max:1305.63 nm) / 1309.14 nm (min:1308.09 nm, max:1310.19 nm)
Fiber type of LR4/ER4 port
9/125 µm SMF
Damage level of LR4/ER4 port
+27 dBm (combined of the 4 wavelengths)
Calibrated λ of AUX port
850, 1310, 1550 nm
Fiber type of AUX port
50/125 µm MMF for 850 nm, 9/125 µm SMF for 1310 & 1550 nm
Damage level of AUX port
+14.5 dBm
Power range of both ports
+11 to -40 dBm
Accuracy of both ports
1 dB ( -40 ~ +10 dBm @ 1295.56/1300.05/1304.58/1309.14 ±1.03 nm, 1310/1550 ±50 nm)
Measurement speed of both ports
< 0.8 seconds
Detector type of both ports
InGaAs
Optical connector type
LC/PC (LR4/ER port), LC/PC (AUX port)
Display
2.8” Color backlit LCD
Show result
dBm, dB
Resolution
0.01 dB
Memory
1,000 records of 4 wavelengths test
Data software
connect via USB
Battery
Built-in Li-Polymer Battery (3.7V, 1800mAH) rechargeable via USB
Battery charging time
180 minutes
Battery life
7 hours
Auto off
Programmable
Operate / storage temperature
-10 ~ 50 °C / -20 ~ 55 °C
Relative humidity
10 ~ 90 % @ 0 ~ 40 °C
Unit size
155 mm x 78 mm x 34 mm
Unit weight
0.35 kg
Shipping weight
0.9 kg
Calibration validity
3 years
Warranty
1 year
