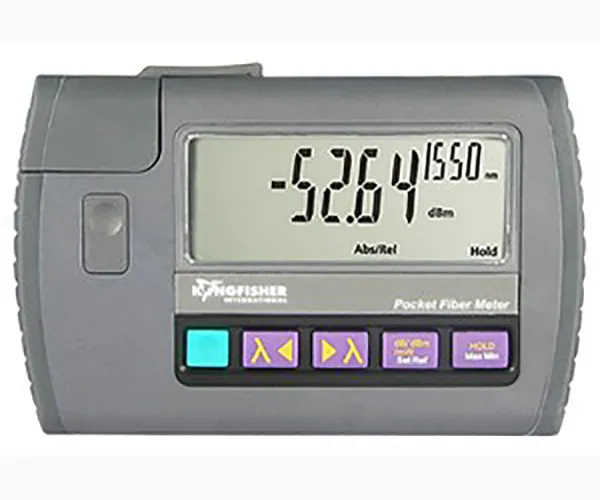

Pocket Optical Power Meter KI 9600A Series

Pocket Optical Power Meter KI 9600A Series

The inexpensive KI 9600A Shirt-Pocket Power Meter is a simple and reliable optical fiber power meter for testing power and loss on all types of fiber optic systems. It provides high accuracy and simplicity of use at an economical price.

9 calibration λ, ±2% accuracy, ISO 17025 traceable
Small size, easy to use, rugged & reliable
2 x AAA batteries, 300 hr life
dBm / dB / linear, 0.01 dB resolution
Display hold & max/min recording
Tone detector with Multi-Fiber ID
Easy to use TamperLock mode
Interchangeable connectors
Full QA reports
3 year warranty & calibration

General KI 9600A Pocket Power Meter specifications

For more detailed specifications, please select a specific part number from the parts & stock tab.

Accuracy	±2 %
Calibration validity	3 Years (ISO17025)
Resolution	0.01 dB
Polarization sensitivity	< 0.05 dB (typical)
Tone detection	200 ~ 2500 Hz ± 2 %
Power	2 x AAA (LR-03) Alkaline
Battery life	300 Hours
Auto-off	Selectable
Size	124 x 81 x 25 mm
Unit weight	0.15 kg
Shipping weight	0.5 kg
Operating / storage temperatures	-15 to 55 / -25 to 70 °C
Relative humidity	0 ~ 95 %
Warranty	3 Years
