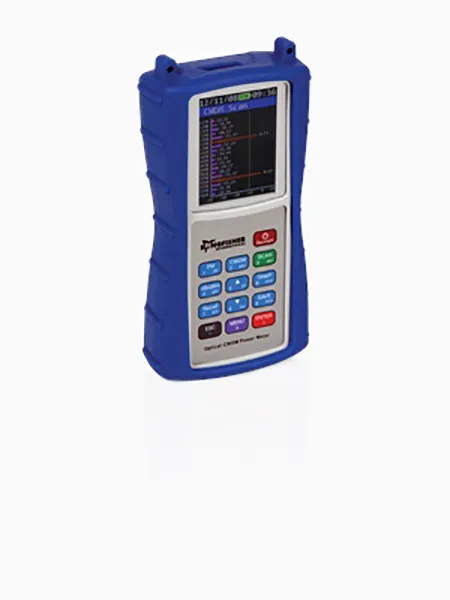

CWDM Channel Power Meter KI 6501
KI6501 is an easy and economical handheld CWDM Power Meter for testing multi-λ single mode fiber optic systems.
It scans and stores absolute power or loss of all 18 CWDM λ in 0.8 seconds, with results viewed in graphical or numerical form,
General KI 6501 CWDM Channel Power Meter specifications
Calibrated λ
1270,1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470,1490, 1510, 1530, 1550, 1570, 1590, 1610 nm
Number of channels
18
Channel spacing
20 nm
Measurement speed
< 0.8 sec
Power range
-40 ~ 10 dBm
Accuracy
0.5 dB (max)
Damaged level
+27 dBm (composition of 18 λ)
Fiber type
Single Mode
Optical connector type
SC/PC
Display
2.8” Colour LCD with backlight
Show result
dBm, dB
Resolution
0.01 dB
Memory
1000 records of 18-λ tests
Data software
connect via USB-mini
Battery
Built-in Li-Polymer Battery (3.7v, 1800 mAH) rechargeable via USB
Battery charging time
180 min (max)
Battery life
7 hours
Auto off
Programmable (5 ~ 600 mins)
Operate / storage temperature
-10 ~ 50 °C / -20 ~ 55 °C
Relative humidity
~90% @ 0 ~ 40°C
Unit size
155 mm x 78 mm x 34 mm
Unit weight
0.35 kg
Shipping weight
0.75 kg
Calibration validity
3 years
Warranty
1 year
