KOCH Pac-Systeme GmbH

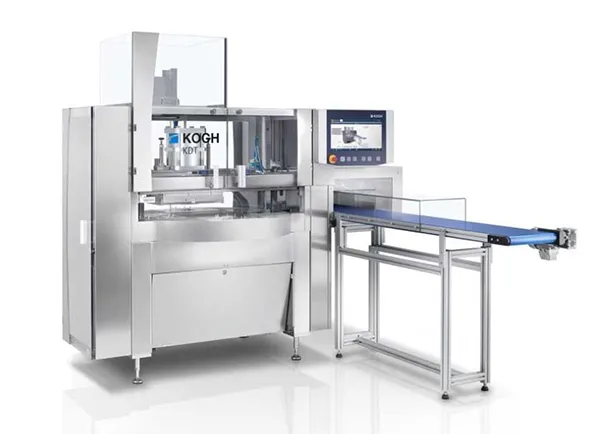

ROTARY TABLE MACHINE

SEAL A WIDE VARIETY OF PACKAGINGS –SIMPLE, FAST AND ECONOMICAL

The KDT rotary table machine has everything you need for cost-effective packaging of consumer goods in small to medium quantities. From the low purchase price and inexpensive format parts to high energy efficiency and the well thought-out machine concept with the latest technologies. The basic equipment of the rotary table machine has a rotary table with 4 sealing tools and a sealing unit for thermal sealing. As a GMP-compliant rotary table machine KDT medplus, the compact system can also be used for sensitive products in the healthcare sector.

MORE PERFORMANCE & FLEXIBILITYFOR YOUR PACKAGING

An additional insertion system enables the automated feeding of various packaging components. These include blisters, cover material from the roll or as a cut or front cards for blisters with a double card. A product feed and other components are also available for an automated solution.The performance data of the rotary table machine KDT at a glance:

Blister depth: max. 70 mm Seal format: 250 x 360 mmSealing force: 30 kN Output: 12 cycles/min. depending on packaging material, shape and sealing time
