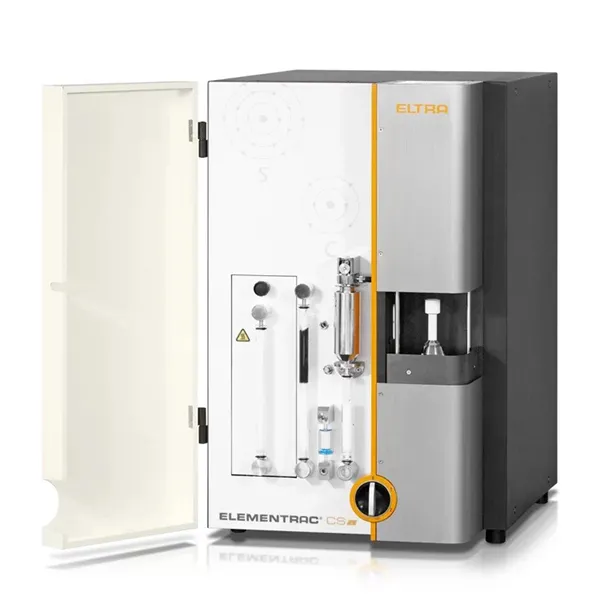

CSi- Carbon or Sulphur Determinator
The new carbon / sulphur analyser ELEMENTRAC CS-i was developed for the accurate and safe analysis of carbon and sulphur in inorganic samples. The analyser is equipped with a powerful induction furnace for sample combustion.
Up to four highly sensitive infrared (IR) cells allow the analyser to determine both high and low carbon and sulphur concentrations in only one measurement run. The measuring range of each cell may be adapted to the user’s specific requirements to ensure optimum measuring conditions for each application.
The analyser is supplied with the new comprehensive and convenient ELEMENTS software, which features statistics, groupings, reports, diagnosis tools and many additional functions for ELEMENTRAC analysers.
Advantages
robust design allows usage in production control and laboratory
Features
Measured elements
carbon, sulphur
Samples
inorganic
Furnace alignment
vertical
Sample carrier
ceramic crucibles
Field of application
construction materials, engineering / electronics, geology / mining, glass / ceramics, steel / metallurgy
Furnace
induction furnace, above 2,000 °C
Detection method
solid state infrared absorption
Number of IR cells
1 – 4
Material of IR path
aluminium (optional gold)
Typical analysis time
40 seconds (nominal)
Chemicals required
magnesium perchlorate, platinum-based catalyst, sodium hydroxide
Gas required
compressed air (4 bar/ 60 psi) oxygen 99.5 % pure (2 – 4 bar / 30 – 60 psi)
Power requirements
230 V, 50/60 Hz, max. 15 A, 3450 W
Dimensions (W x H x D)
52 x 84 x 75 cm
Weight
~ 150 kg
Required equipment
balance (resolution 0.0001g), monitor, PC
Optional accessories
Autoloader (for 36 crucibles), carrier gas purification, halogen trap, HTF-540 pre-heating furnace, vacuum cleaner
