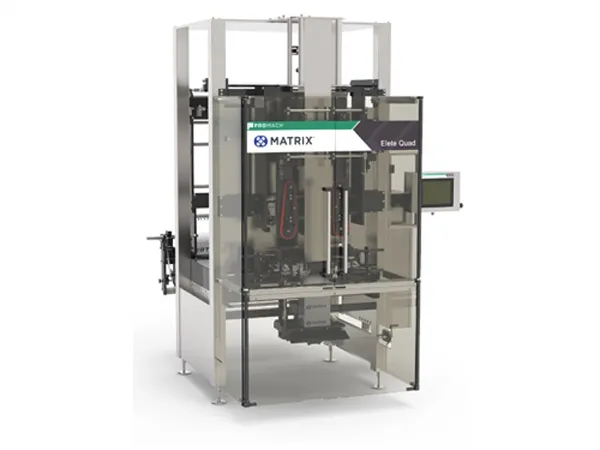

Elete DS-13 Quad Vertical Form Fill Seal Machine

Elete DS-13 Quad Vertical Form Fill Seal Machine

The Elete DS-13 Quad offers benefits of minimal maintenance as well as a quick changeover and setup. Features include automatic film tracking, a stainless steel frame, and a registered film sensor. This machine is fully compatible with all types of fillers.

The Elete Quad is the best solution for high quality four side sealed flat bottom bags. The cycle speed for this equipment is up to 120 BPM. Options on the Elete DS-13 Quad include washdown construction, gas flush, and quad ready features.

Features & Benefits

• Stainless steel frame and NEMA 4X electrical enclosure
• Machine range (W x L): - Elete DS13 Quad: 13" x 18" (330mm x 457mm)
• Double Stack High speed stepper electric "Smart Jaw ST" sealing system
• Allen Bradley MicroLogix 1500 PLC with 10" adjustable position color touch screen
• Integrated temperature control system PLC
• Automatic web edge guide film tracking system, Encoder and registration sensor standard
• Run pillow, FBB or quad bags on one machine
• Tool free film roll and forming tube change over
• Modular, non-proprietary design
• User configurable spare PLC I/O and USB port for data storage
• Registered film sensor, print registration roller and automatic film tracking
• Danaher MicroStepping motors for film pull and jaw motion control (servo optional jaw)
• Full compatibility with all types of fillers
• Quad Module which includes, 4 vertical sealer assemblies, adjustable vertical seal bar, flat bottom bag attachment, flat bottom bag load shelf for 15” bags
