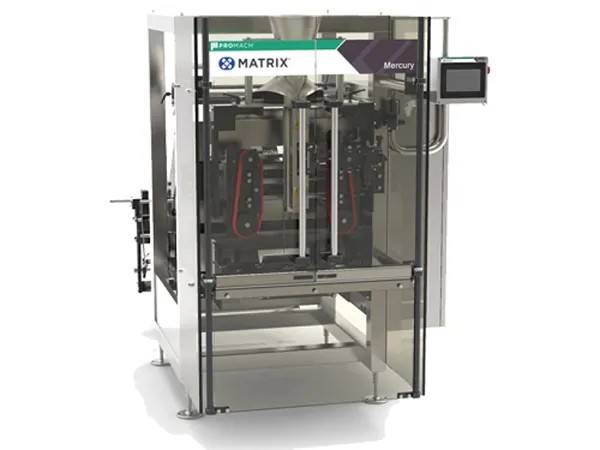

Mercury Vertical Form Fill Seal Machine

Mercury Vertical Form Fill Seal Machine

The Mercury is a high speed Matrix vertical form fill seal machine designed with longevity in mind. When you need a reliable, durable, system, the Mercury is the perfect solution. With a cycle speed up to 140 BPM and many available options, you’ll notice a drastic difference in manufacturing and production.

The Mercury high speed is simply the most profitable machine in the world for Matrix customers. Standard features on this system include a stainless steel frame, automatic film tracking, a registered film sensor, and much more.

Features and Benefits

Below you will find features of the Mercury high speed vertical bagging machine.

• Stainless steel frame and NEMA 4X electrical enclosure with stainless steel adjustable mounting feet
• Danaher microstepping motors for film pull and jaw motion control
• "SmartJaw" ST horizontal sealing technology
• Small foot print
• Speeds up to 140 BPM
• Bag width from 2"(51mm) to 11"(280mm)
• Bag length from 3"(76mm) to 15"(381 mm) on a single pull
• High speed stepper electric "SmartJaw" ST horizontal sealing system
• Self-centering film drive down system
• Allen Bradley MicroLogix PLC control system
• 7" Color Touchscreen
• Bilingual operator interface (English/Spanish)
• Four zone temperature control within PLC
• Automatic edge guide film tracking system, Encoder and registration sensor standard
• Short travel, angled incline film unwind system
• Tool-Free quick change core chucks
• Modular design
