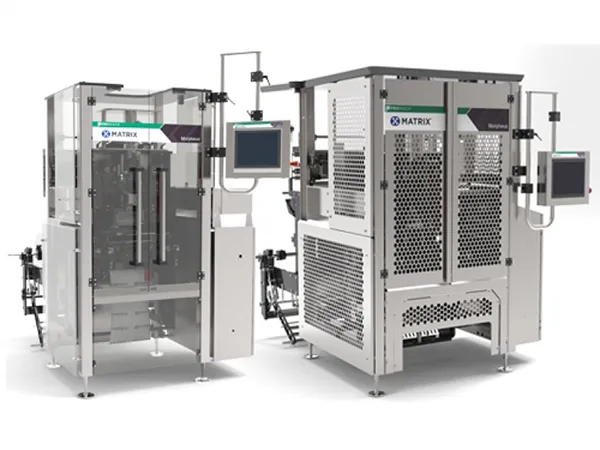

Morpheus Series Vertical Form Fill Seal Machine

Morpheus Series Vertical Form Fill Seal Machine

Morpheus Series Vertical Form Fill Seal Machine

Matrix has developed a series of Morpheus machines that can meet the needs of your production floor. Choose from either Allen-Bradley controls or the state-of-the-art Beckhoff control system. Combine new, faster technology with; user friendly, highly intuitive, and bursting with possibilities for further technological advancements, these control systems will remain on the cutting edge for years to come. The versatility of this new high speed technology allows the Matrix Morpheus continuous box-motion VFFS to succeed in all types of conditions and with a huge range of products and applications.

Runs films that require longer seal times making it ideal for markets such as:

  • Snack Industry, Frozen, Fresh cut, IQF (Individually Quick Frozen) markets, the Cheese Industry and more

AutoPro Automatic Changeover System

The AutoPro System is standard on the Morpheus series.

The AutoPro changeover solution from Matrix eliminates manual adjustments such as hand cranks and thumb screws in favor of precision electronic motion control to effectively eliminate time consuming adjustments during changeover. With the touch of a button your can re-configure your format automatically. Making changeover fast and easy for any operator.

Features and Benefits

  • AutoPro™ Servo Adjustment System
  • Electronic film registration mark
  • Pneumatic film roll brake
  • Automatic film tracking
  • Compatible with thermal transfer printers, such as ID Technology.
  • Servo-driven continuous box-motion jaw for maximum speed and jaw dwell time
  • High performance vacuum film pull belts (improves performance with difficult films)
  • Rockwell (Allen Bradley) or state-of-the-art Beckhoff PC-based controls
  • 12" multi-touch HMI with 800 x 600 screen resolution
  • PackML state control system
  • Comprehensive self-diagnostic tools
  • Stainless steel 304 frame polished and ground (corrosion resistant)
  • Stainless steel NEMA 4X electrical enclosure
  • Stainless steel adjustable mounting feet or optional casters
