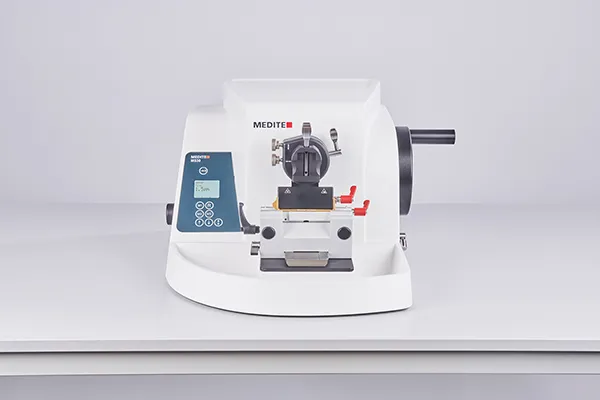

Semi-automatic Rotary Microtome M530
Highlights
Product Details
The Microtome M530 is made in Germany and designed to meet multiple requirements of histology or histopathology labporatories. It is also suitable for the use in research laboratories as well as industrial quality assurance. With its high-precision technology, the Microtome M530 permits quality sections while maintaining a high, consistent throughput. Great functionality and the appealing design are key features.
The Microtome M530 features a display with soft-touch keys on the left side that allows quick and easy setting of the sectioning values. On the right side, the handwheel is located. It is made especially smooth-running in order to reduce the neccessary user effort during the sectioning process, enabling more comfortable use and a longer operating time. To prevent involuntary movement, the handwheel can easily be locked in position when not in use. Memory Positioning is another great feature of the Microtome M530. It allows users to save sectioning positions and select them again at another time.
Sectioning waste collected in a large tray on the front that can easily be detached for cleaning. The casing also offers additional storage space on top, to keep neccessary accessories within comfortable reach during the sectioning process.
Technical Data
Setting range for sectioning:
– from 0.5 µm to 5 µm in 0.5 µm steps
– from 5 µm to 99 µm in 1 µm steps
Setting range for trimming:
– from 0 µm to 100 µm in 5 µm steps
– from 100 µm to 500 µm in 50 µm steps
Horizontal specimen feed:
30 mm
Vertical stroke:
70 mm
Dimensions incl. tray (W/D/H):
377 x 530 x 281 mm
Weight:
ca. 30 kg
Power Supply:
110-240V / 50-60Hz (instrument operates anywhere without switching power supply voltage)
