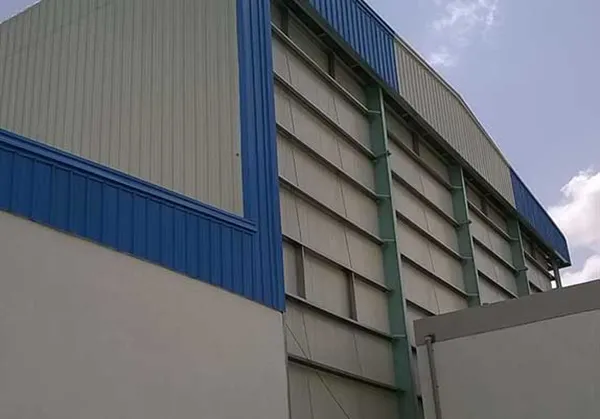

Self-supporting polyurethane insulation metal panel system, insulated with rigid PUR/PIR foam, with a concealed-fixing method for high quality industrial and commercial buildings, where good aesthetics are paramount.
The special double labyrinth joint of this panel, provides mechanical resistance and insulation superior to any other wall panel product of this kind, the panel external micro-V increases the aesthetic appeal of this panel, which can be orientated both vertically and horizontally as required.
Because of the particular shape of the joint, blind fastening are applied to the V-cut on the male edge of the outside sheet. Two screws with center distance of 30 mm should be used for each panel and each stud.
Outside walls are made mounting such panels one next to the other.
Table Of Safe Spans
Values guaranteed with steel sheets, thickness 0.6 + 0.5 mm. Spans l in metres, as a function of a uniformly distributed load p (daN/m2), have been obtained from experimental data and calculated to provide a deflection limit: f<=l /200 of the span and a minimum safety coefficient that complies with the UEAtc standards for insulated panels, which have been established and are implemented by primary Europea Certifying Organizations.
