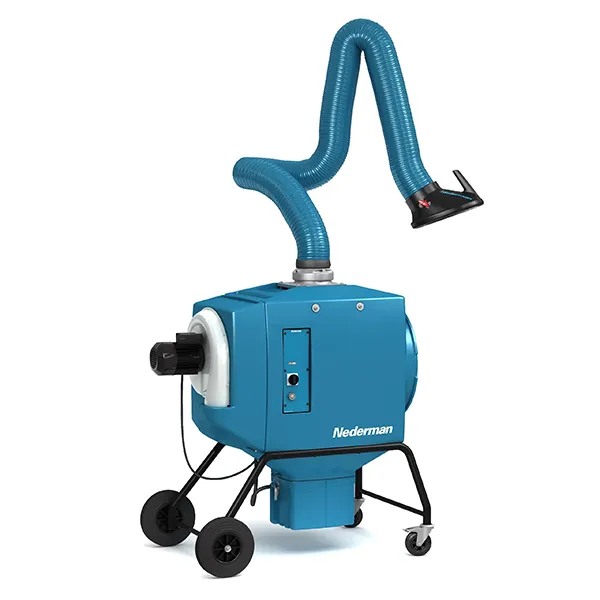

FilterBox 10M
Manually cleaned for light to medium dust & fume applications.
The FilterBox 10M is equipped with a N24 fan for a maximum air flow capacity of 1 000 m3/h (600 CFM). An integrated silencer reduces noise from the fan and outlet air.
The unit has a filter supervision system which indicates when the air flow is too low. Depending on the model, it is equipped with mechanical cleaning for dust applications or a combination of mechanical and compressed air cleaning for fumes and dust.
FilterBox 10M is available either as a mobile unit on wheels or attached to a floor stand. Additional protection from harmful particles is provided if a HEPA filter is installed. For dust applications, the unit is cleaned mechanically. For welding fumes it uses a combination of mechanical and compressed air cleaning. For welding applications, compressed air cleaning is required. Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.
Technical data
Airflow (m³/h)
1000
Certifications
CE
Compressed air requirement
DIN ISO 8573-1, class 5/5/4 (7 bar)
Dustbin volume (l)
15
Extraction arm diameter (mm)
160
Filter Area (m²)
13
Filter efficiency (%)
99
Installation
Indoor
Material
Casing in rotomoulded plastic
Noise level (dB(A))
66
Protection class
IP 54
Electric plug
without
Filter cleaning method
Mechanical, Compressed air
Filter material
Polyester PW13
Filter type
Cartridge
Frequency (Hz)
50
Number of filter elements
1
Weight (kg)
102
