FilterCart
Easy to use mobile filter unit for light to medium welding applications

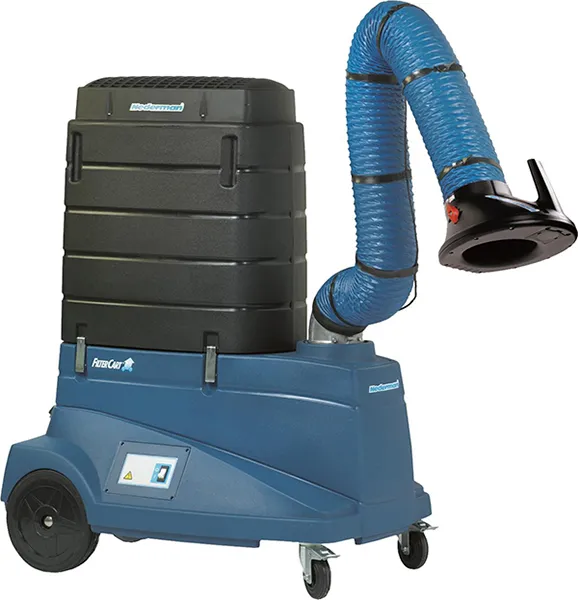

FilterCart Original mobile filter unit for light welding and extraction applications. FilterCart Original includes Extraction Arm Original with an integrated spotlight, which optimizes the user-friendly design. If a larger working range is needed, the 3 m (10 ft.) long arm is recommended.
Technical data
Certifications
CE
Noise level (dB(A))
73
Protection class
IP42
Filter efficiency (%)
99
Installation
Indoor
Material
Housing in roto moulded plastic. Extraction arm in PVC hose and aluminium frame. Fan in steel and aluminium.
Suitable for combustible dust
No
Material recycling (% weight)
Application
Fumes
Extraction arm diameter (mm)
160
Airflow (m³/h)
1050
Filter Area (m²)
30
Electric plug
Euro (CEE 7/2 P+E)
Filter cleaning method
One way filter
Filter material
Nanofiber
Filter type
Cartridge
Frequency (Hz)
50
Number of filter elements
1
No of phases
Power (kW)
75
Power Voltage (V)
230
Weight (kg)
