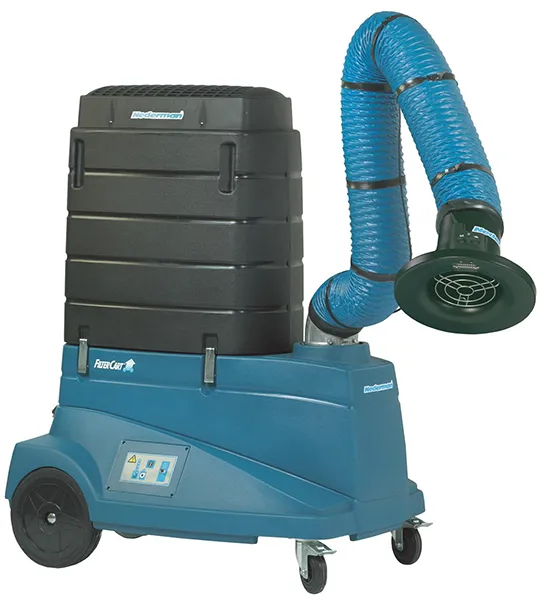

FilterCart W3
Easy to use mobile filter unit for light to medium welding applications
FilterCart W3 mobile filter unit for extraction in light production applications is ”state of the art” with all possible features. Includes a warning signal when the filter is full. The W3 model fulfills the legislations W3 from BGIA. The specially designed metal hood with integrated spotlight creates maximum air velocity at the welding spot.
Technical data
Airflow (m³/h)
1050
Certifications
CE
Extraction arm diameter (mm)
160
Filter efficiency (%)
99
Installation
Indoor
Material
Housing in roto moulded plastic. Extraction arm in PVC hose and aluminium frame. Fan in steel and aluminium.
Material recycling (% weight)
Noise level (dB(A))
73
Protection class
IP42
Suitable for combustible dust
No
Filter Area (m²)
30
Filter cleaning method
One way filter
Filter material
Nanofiber
Filter type
Cartridge
Number of filter elements
1
Weight (kg)
