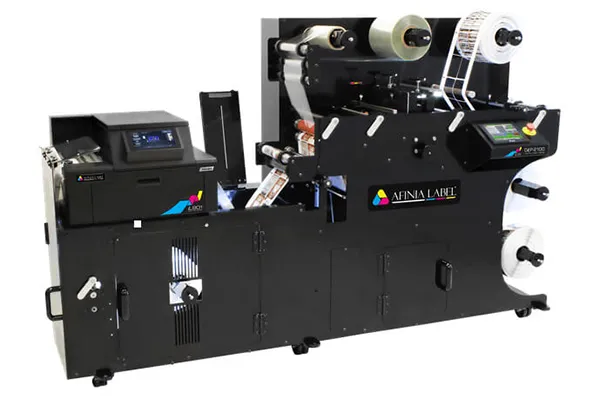

DLP-2100 Digital Label Press
DLP-2100 - High-Volume Digital Label Press
Overview
The DLP-2100 can print, die cut, and finish labels at up to 60 feet per minute. This full-featured workhorse is capable of laminating, die cutting, waste removal, slitting, and rewinding to finished rolls that are ready for application.
The label press is perfect for higher-volume label consumers as a way to bring label production in house to simplify inventory, reduce costs, and create flexibility. It’s best for situations involving repeat jobs and a small variety of predictable sizes.
Print shops are also using the DLP-2100 to offload short runs from larger, more expensive equipment or to add the capability to produce labels in-house—allowing for faster turnaround, better quality control, and more profitability on lower-volume label runs.
DLP-2100 Specifications
Print Speed
≤60 ft/min. (18m)
Print Quality
1600 DPI full-color output
Max Web Width
9.65′′ (245mm)
Lateral Paper Adjustment
0.5′′ (12mm)
Core Size
3′′ (76mm)
Max Laminate OD
11′′ (280mm)
Laminate
Economical, self-wound and supported laminate (on a liner). Liner removal included for use with high quality, liner-supported laminate
Max Diecutting Width
9′′ (230mm)
Cutting Dies
Flexible steel – Recommended total die length 7′′ (177mm) to 12′′ (304.8mm)
Registration Sensor
Laser
Registration Sensor Adjustment
Across web width
Sensor Mark
0.2′′ x 0.2′′ (5mm x 5mm)
Max Finished Label Rewind
Max Waste Matrix Rewind
11.8′′ (300mm)
Razor Slitter Assembly
6 knives
Razor Slitter Lateral Adjustment
0.47′′ (12mm)
Media Capacity
Integrated unwinder, 19" max outer diameter
Dimensions
88′′ (223cm) W x 34′′ (86cm) D x 57′′ (145cm) H
Frame
0.4′′ (10mm) solid aluminum
Safety
Emergency stop button
Loop
Photoelectric distance sensor
Power
240v AC, 10 A. (not adjustable)
Speed Control
Runs at 6′′ or 12′′/second
Weight
420lbs (190kg)
Motors
2, 400 W / 90 W
Control
PCB. Inverter, Encoder, Touchscreen control panel
Afinia Part Numbers
DLP-2100: 31042
L901 Printer: 29698
Black Ink: 26730
Cyan Ink: 26723
Magenta Ink: 26716
Yellow Ink: 26709
