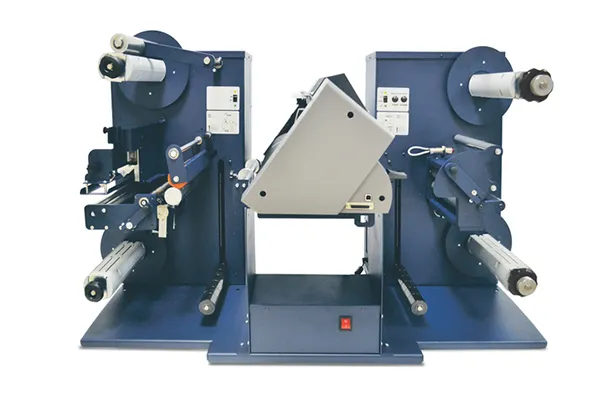

Virgo Desktop Digital Label Finishing Systems

Virgo Desktop Digital Label Finishing Systems

Virgo Desktop Digital Label Finishing Systems

The Virgo compact desktop finishing system is a great companion to any NeuraLabel printing system. This device unwinds, laminates labels for durability, digitally die cuts, removes excess label material around each die-cut shape, slits, and rewinds, offering you everything to professionally cut and finish labels. This longitudinal label finishing system satisfies the present-day necessity to make the most of the print area with the possibility to obtain more rows of labels from the same roll, and then split it through the use of the slitter.

The system provides a very accurate label finishing solution that is using cutting plotter technology with reduced dimensions. This allows you to cut different types of materials and shapes on the fly without the added cost of dies.

The unit is also equipped with a cutter management tool that works in tandem with a camera, forming an integrated optical black-mark registration system that provides cutting speed optimization and avoids synchronization issues. The Virgo's core features offer the user full flexibility, limitless variations in label design, and a smooth workflow.

The Virgo digital label finisher is truly the perfect on-demand short-run label finishing solution for those using digital color label printers and presses.

Virgo software

The Virgo finishing system is equipped with a camera that works together with Virgo software to detect the black-mark printed on the media. This camera assists the software in detecting the black-mark created inside the cutting file. This process tells the plotter when and where to start cutting the media. With Virgo software, the operator can also import the cutting files created in Adobe Illustrator or Corel Draw which is also used to create the black marker.

Waste pressing roll

The pressing roller positioned above the waste core holder facilitates the matrix removal from the die-cut roll, reducing the risk of tearing and ensuring more precise operation of the machine.

Easy to move
Virgo series are equipped with two handles, one on each side, that allow you to easily move the machine. This added benefit makes the Virgo a complete machine for all of your business needs.

Virgo Series Specifications



VRG14PL

VRG22PL

Input / Output Max. Roll Diameter

7.87″ (200 mm)

7.87″ (200 mm)

Minimum Media Width

3.94″ (100 mm)

3.94″ (100 mm)

Maximum Media Width

5.51″ (140 mm)

8.86″ (225 mm)

Maximum Cutting Width

4.80″ (122 mm)

7.87″ (200 mm)

Minimum Slitting Width

0.75″ (19 mm)

Minimum/Maximum Label Length

0.39″ (10 mm) / 13.77″ (350 mm)*

*with limitations

Lamination Module

YES

Number of Slitting Blades

up to 6

up to 8

Maximum Media Thickness

10 mil (0.25 mm)

Maximum Cutting Speed

24 ips (600 mm/s) in all directions

Roll Core Size

3″ (76 mm)

Dimensions

L = 45.66″ (116 cm) H = 26.77″ (68 cm) W = 26.77″ (68 cm)

Weight (estimated)

220 lb (100 kg)

440 lb (200 kg)

Warranty

One year parts included. Usage limitations may apply.

On-site service available.

Speak with your sales representative for details.
