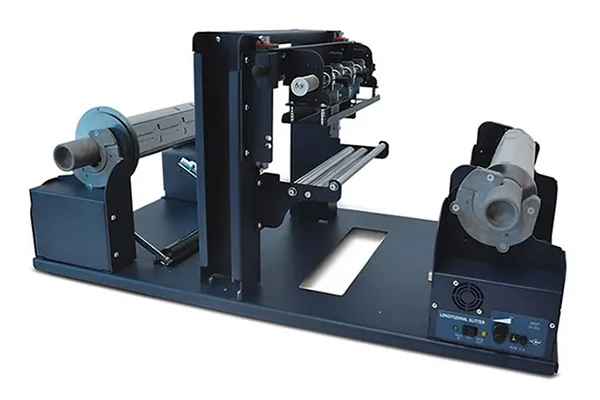

Longitudinal Label Slitter for Label Printers
The longitudinal label slitter is a great companion to any NeuraLabel printing system. This device reduces production time by creating multiple rolls of labels from a single 8.5 inch roll. In addition, the waste matrix is removed in-line, allowing the end user to remove each label with ease.
The longitudinal label slitter satisfies the present-day necessity to make the most of the print area with the possibility to obtain more rows of labels from the same roll, and then split it through the use of the slitter.
The cutting operations are done by a common cutter blade that is located in an apposite blade holder. The slitter has an external auto-switching 100/240V power supply and an electronic circuit controls all its functions.
The longitudinal label slitter, equipped with two 76 mm (3") fixed core holder is able to work rolls with a diameter of 250 mm (10"). The maximum width of the roll is 240 mm (9.45") and it is possible to obtain rows of labels not narrower than 19 mm (0.75").
Longitudinal Label Slitter Specifications•
Outside Roll Diameter
Up to 10″ (250 mm)
Maximum Media Width
9.45″ (240 mm)
Minimum Slitting Width
0.75″ (19 mm)
Number of Slitting Blades
4 blades included
Roll Core Size
3″ (76 mm) fixed core holders
Dimensions
L x 28.34″ (720 mm) H x 14.56″ (370 mm) W x 16.73″ (425 mm)
Weight
55 lbs
Warranty
One year parts included. Usage limitations may apply.
On-site service available.
Speak with your sales representative for details.
