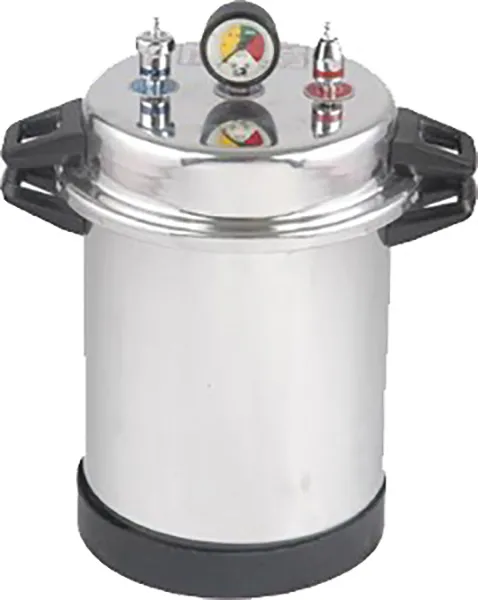

Portable Autoclave (Cooker Type) (PLT-105 E)
APPLICATIONS OF PORTABLE AUTOCLAVE PRESSURE COOKER TYPE
SALIENT FEATURES & CONSTRUCTION OF PORTABLE AUTOCLAVE PRESSURE COOKER TYPE
Model No.
APC - 1
APC - 2
APC - 3
APC - 4
Hight * Dia
275 x 225 mm
300 x 300 mm
350 x 300 mm
550 x 300 mm
Capacity
10 ltr
21 ltr
24 ltr
39 ltr
Heat Load
1.5 KW
2.0 KW
3.0 KW
Gasket (Joint less)
Neoprene
Chamber Wall
Single Walled (Seamless)
Exhaust of pressure
Manually through aexhaust valve
Pressure Gauge
0-2.1 kgf/cm² (30 psi)
Sterilizing Pressure
0-2.1 kgf/cm² (15 psi) at 121°C.
Hydraulically Tested
Up to 40 psi
Pressure Vessel
Aluminum / Stainless Steel (SS-304)
Power Supply
220/230V AC, 50/60 Hz
