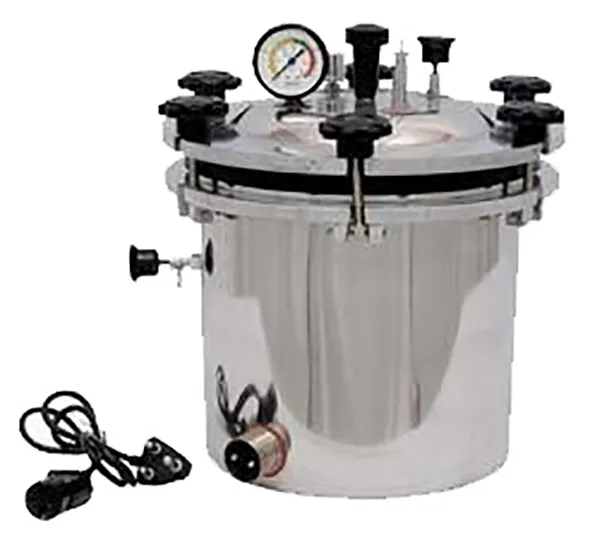

Portable Autoclave (PLT-105 A)

Portable Autoclave (PLT-105 A)

Portable Autoclave (PLT-105 A)

APPLICATIONS OF PORTABLE AUTOCLAVE

  • Portable Autoclave is low cost device for general sterilization ideal for doctors, nursing homes, laboratories, dentists etc.
  • Mainly used as general laboratory equipment where samples in small batches are required to be sterilized.
  • Light weight & easy to carry.

SALIENT FEATURES & CONSTRUCTION OF PORTABLE AUTOCLAVE

  • Available Electrically / Gas Heated, Single walled, (joint less body) complete with Stand in Aluminum & Stainless Steel Models.
  • Hydraulically tested upto 40 psi for user safety.
  • Spring loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
  • Wing Type Simple and easy "Press & turn" system of closing lid for single walled units.
  • Lid is fitted with pressure gauge, safety valve and manual exhaust valve.
  • Vacuum breaker-cum-purge valve works as a safety device.
  • Moulded neoprene rubber gasket.

Internal Dimension (Dia x Height)

300 x 300 mm

Gasket (Jointless)

Neoprene

Heat Load

2.0 KW

Chamber Wall

Single

Exhaust of Pressure

Manually through aexhaust valve

Pressure Gauge

0-2.1 kgf/cm² (30 psi)

Sterilizing Pressure

0-2.1 kgf/cm² (15 psi) at 121°C.

Pressure Vessel

Aluminum / Stainless Steel (SS-304)

Power Supply

220/230V AC, 50/60 Hz
