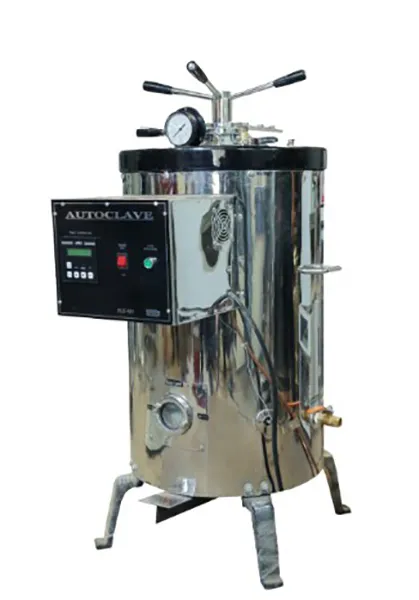

Vertical Autoclave - Fully Automatic

Vertical Autoclave (Fully Automatic) (PLT-101 A)

APPLICATIONS OF FULLY AUTOMATIC VERTICAL AUTOCLAVE

• Autoclave Vertical are most ideal for critical applications requiring assured and reliable total destruction of all living micro- organisms
• Vertical autoclave is low cost options for general sterilization ideal tool for Laboratories, Hospitals, Nursing Homes, R&D labs etc, Pharmaceutical, Food &Beverage Industries and Institutions

SALIENT FEATURES & CONSTRUCTION OF FULLY AUTOMATIC VERTICAL AUTOCLAVE

• Inner & Outer Chamber, constructed from S. S. 304 Grade
• Bucket / Basket Made of Stainless Steel
• Water Level Indicator
• Lid Closing by Radial Locking System
• Sealing of Lid by Neoprene Rubber Gasket
• Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve.
• Operating range from 15psi to 20psi pressure
• Sterilizing Temperature up to 1340C
• Tested up to 2.5 times of required Pressure
• Fully automatic models requiring no human intervention till a full sterilization cycle is over.
• Fitted with a (Programmable Logic Controller) LCD Display with respect to time and temperature.
• Enabling user automatic purging of stale air.
• Sterilizing hold time system for sterilizing period and cycle end.
• Automatic exhaust of pressure.
• Audio alarm/ buzzer is raised at the end of the cycle on.
• Voltage: 220 Volts AC (50 Hz)
