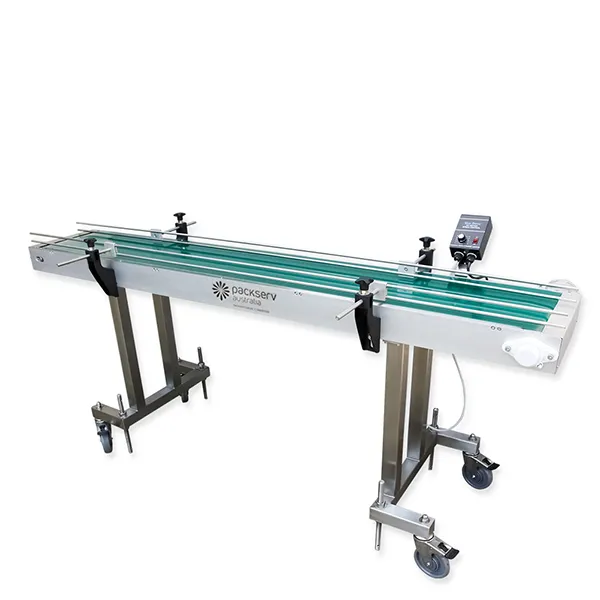

2Mtr Rubber Belt Conveyor
The Packserv PBC-6-2 Rubber Belt Conveyor measures 2000mm in length and is designed to handle large containers with it’s 300mm wide belt. Suitable for containers of all shapes and material types.
Description
Our PBC-6-2 rubber belt conveoyr measures 2000mm in length and is designed for handling all types of containers regardless of shape or material; as long as they can stand of their own accord. Containers are normally fed to the conveyor to assist with other production line systems such as filling, capping, labelling, marking and sealing. The belt of this conveyor is 300mm in width.
The Packserv conveyor systems are designed to be modular allowing for use with our entire suite of equipment as well as other manufacturers. All of our gating and sensor systems are designed to be utilised with the guide rails used by this conveyor.
The 316 stainless steel frame is mounted on top of castors/wheels to allow for unparalled manoeuvrability, furthermore this machine features levelling jacks on rubber feet to allow traction and height adjustment of the entire conveyor to suit any production line.
This conveyor utilises an AC motor with a VSD controller that allows the conveyor to be easily put into reverse at the touch of a button.
*Rent: Brand and model may vary. The machine will be identical in function.
Specifications
Weight
60 kilograms
Length
2000mm
Width
500mm
Height
1200mm
Operating Height
900mm belt height, adjustable on frame
Power Supply
Single phase 240V, 10 Amp
Construction Type
All 316 stainless steel, aluminium and engineering grade plastics
Container Type
Boxes, bags, bottles, jars, tubs, containers that will stand on a conveyor
Mounting
Lockable castors
Industries
All food, pharmaceutical and industrial applications
Noise
Low
Conveyor
300mm wide rubber belt
Speed
Variable speed control
Guide Rails
Fully adjustable, height and width
Reversible
Yes
