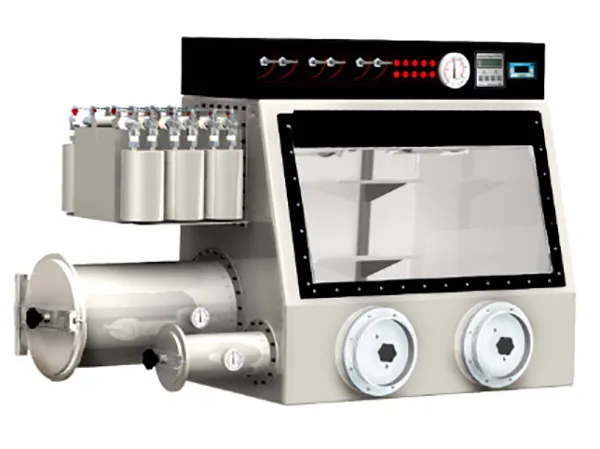

Beta
Larger range of dry anaerobic gloveboxes available single or double sided configuration:
External Dimensions:
Length (2 port): Length (3 port): Length (4 port):
Depth: Height:
1820mm 2220mm 2620mm
750mm 1080mm
Internal Dimensions:
Depth: Height front: Height rear:
1094mm 1494mm 1894mm
669mm 300mm 894mm
Weight:
2 port: 3 port: 4 port:
240Kg 265Kg 290Kg
Volume:
0.59m³ 0.81m³ 1.03m³
Leak Rate:
0.05% of volume of box per hour @ +/- 4” WG
Material:
Stainless steel Type 304
Finish:
Satin non glare
Electrical: Internal sockets: Lighting:
One twin Fluorescent (external)
Controls:
Low maintenance Valves and gauges
Lockchambers: Number: Large internal dimensions: Small internal dimensions: Construction: Material: Finish: Internal External Doors:
Door operation: Internal
External Purging: Pressure gauge:
Two Ø300mm x 550mm long Ø125mm x 300mm long Cylindrical Stainless steel (304), thickness 3mm Satin non glare Satin non glare Anodised aluminium, 12mm thick, one hand operation Large: Counterbalanced Vertical lift pivot hinge Small: Lift off Large: Hinged Small: Lift off Manually operated valves Analogue
Pressure Control:
Full automatic pressure control via pressure switches and solenoids
Over/under pressure is maintained by a low maintenance gas bubbler -2000 to +500 Pa (-8 to +2 WG)
Gas Scrubbing System:
Removal of moisture and oxygen using a closed loop re-circulation system
Attainable purity: <1ppm moisture <1ppm oxygen
Blower: Precision side channel blower Quiet running High flow rate Long life Oil free Internally mounted
Regeneration: On box manually controlled
Window:
Toughened safety glass 10mm
Glove Ports:
Anodised aluminium
Gloves:
8” (204mm diameter) Individually gas purgeable Glove change independent of external atmosphere
Shelves:
Two adjustable, stainless steel
Options:
Oxygen meter: Moisture meter: Vacuum pump: Cold wells: Stand:
Switchable positive/negative control Polycarbonate window Gas/electrical/signal breakthroughs Fully radiused corners for nuclear
work 316 stainless steel construction Polycarbonate/acrylic construction
Single or double sided configuration
Digital, integrally fitted, range: % or PPM Digital, integrally fitted, range: % or PPM Edwards (RV5 recommended) To customer’s specification Powder coated mild steel (stainless steel option) including fixed feet or castors
To customer’s specification
Custom design model
