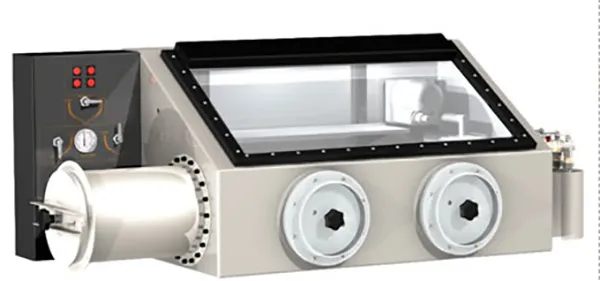

Omega
Popular low cost, low maintenance dry anaerobic glovebox specially designed for many laboratory applications:
External Dimensions: Length (2 port):
Depth:
Height: 1745mm
709mm
605mm
Internal Dimensions: Length (2 port):
Depth:
Height front:
Height rear: 1094mm
649mm
300mm
599mm
Weight: 2 port: 140Kg
Volume: 0.34m³
Leak Rate: 0.05% of volume of box per hour @ +/- 4” WG
Material: Stainless steel
Type 304
Finish: Satin non glare
Electrical:
Internal sockets:
Lighting:
One twin
Fluorescent (external)
Controls: Low maintenance
Valves and meters
Lockchambers:
Number:
Internal dimensions:
Construction:
Material:
Finish: Internal
External
Doors:
Door operation: Internal
External
Purging:
One
Ø250mm x 400mm long
Cylindrical
Stainless steel (304), thickness 3mm
Satin non glare
Satin non glare
Anodised aluminium, 12mm thick, one hand operation
Vertical lift pivot hinge
Lift off
Manually operated valves
Pressure Control: Full automatic pressure control via pressure switch and gas solenoids
Over/under pressure is maintained by a low maintenance gas bubbler -2000 to +500 Pa (-8 to +2 WG)
Gas Scrubbing System: Removal of moisture and oxygen using a closed loop re-circulation system
Attainable purity: <1ppm moisture
<1ppm oxygen
Blower: Precision side channel blower
Quiet running
High flow rate
Long life
Oil free
Internally mounted
Regeneration: Off box regeneration system
Window: Toughened safety glass 10mm
Glove Ports: Anodised aluminium
Gloves: 8” (204mm diameter)
Gas purgeable gloves via umbilicus
Glove change independent of external atmosphere
Shelves: Two adjustable, stainless steel
Options:
Oxygen meter:
Moisture meter:
Vacuum pump:
Cold wells:
Stand:
Switchable positive/negative control
Polycarbonate window
Gas/electrical/signal breakthroughs
316 stainless steel construction
Polycarbonate/acrylic construction
Digital, integrally fitted, range: % or PPM
Digital, integrally fitted, range: % or PPM
Edwards (RV5 recommended)
To customer’s specification
Powder coated mild steel (stainless steel option) including fixed feet or castors
To customer’s specification
Custom design model
