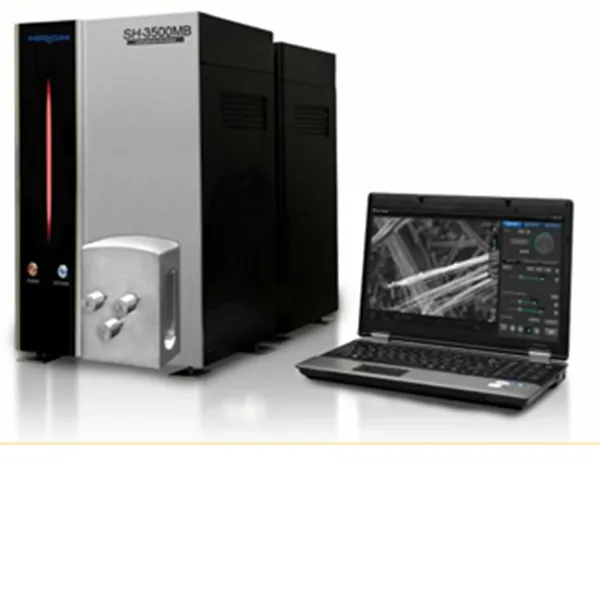

HIROX SH-3500MB SEM

HIROX SH-3500MB SEM

Ideal entry level work horse with the following features:

• Maximum 30,000x Magnification
• BSE Detector (Solid State Type)
• 5kV to 30kV Variable Accelerating Voltage
• Multi-Vacuum Mode – Standard / Charge Up Reduction
• Image Observation Ready within 2 min.
• 3-axis Strokes – X,Y,R
• Electron Gun: Pre-centered Tungsten Filament Cartridge
• Lens: Two-stage Condenser / One-stage Objective
• Stigmator: 8 Pole Electromagnetic
• Aperture: 200um fixed

Non-conductive samples can be observed without coating, easy to use:

• Auto adjustment function

• System can be ready within 2 minutes after sample

• exchange

• Compact and flexible

• Friendly GUI (Graphical User Interface)

High quality images:
• Image resolution up to 5Megapixels
• Good depth of field
• Multiple image formats compatible
• On-screen measurement of distance, angles…etc.
