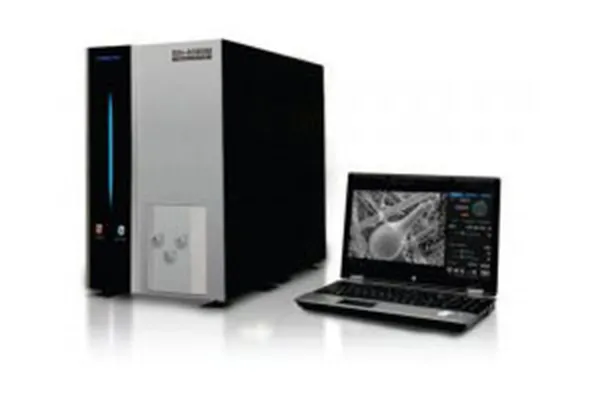

HIROX SH-4000M SEM

HIROX SH-4000M SEM

Advanced Benchtop SEM with many exciting features

• High magnification beyond the optical limit:
• Max. 60,000x Magnification
• SE Detector & BSE Detector – Multi Mode
• 5kV to 30kV Variable Accelerating Voltage in 5  steps
• Multi-Vacuum Mode – Standard / Charge Up Reduction
• Image Observation Ready within 2 min.
• 3-axis Strokes – X,Y and Rotation 360degrees
• Electron Gun: Pre-centered Tungsten Filament Cartridge
• Lens: Two-stage Condenser / One-stage Objective
• Stigmator: 8 Pole Electromagnetic
• Aperture: 200um fixed
• Options – EDS System, Cooling Stage

Non-conductive samples can be observed without coating, easy to useAuto adjustment functions:
• System can be ready within 2 min after sample exchanged
• Compact and flexible
• Friendly GUI
