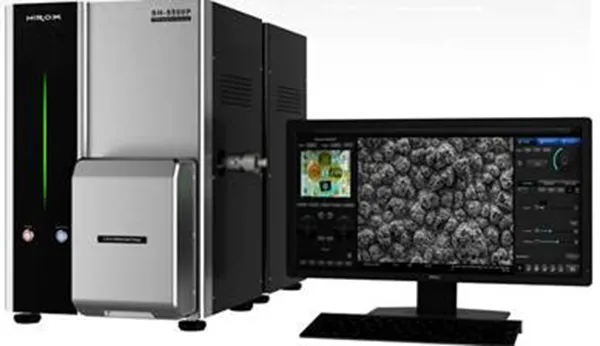

HIROX SH-5500P Benchtop SEM

HIROX SH-5500P Benchtop SEM

First ever benchtop SEM with a 5-axis motorised stage and 1-30KV accelaration

Not only can the user get a motorized x-y-z movements but it also includes 360degrees rotation and tilt.

The HIROS SH5500P offers features comparable to an entry level floor standing Scanning Electron Microscope

• Up to 150,000x Magnification
•  SE and BSE Detector
• 1kV to 30kV Variable Accelerating Voltage in 6 steps
• Multi-Vacuum Mode – Standard / Charge Up
• Image Observation Ready within 2 min.
• 4-Hole Variable Aperture (30/50/100/200µm) for enhanced imagin
• Five axis motorised stage: X-Y-Z-R-T
• 5nm resolution
• Options – BRUKER EDS System, Cooling Stage and many more

Non-conductive samples can be observed without coating, easy to use:

• Auto adjustment functions
• System can be ready within 2 min afte• sample exchange
• Compact and flexible
• Friendly GUI
