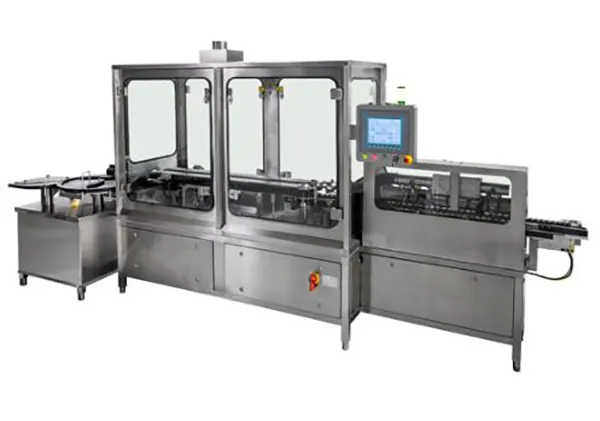

High Output External Vial Washer

Features
 Can be used as a stand-alone unit with an infeed and outfeed turntable or integrated into a filling line
 Separate drying stem is required to assure bone-dry vials when exiting the decontamination machine
 No alignments of spray nozzles
 No format parts required for 13 and 20mm caps
 Equipped as standard with an Allen Bradley CompactLogix PLC and an Allen Bradley PanelView 600 Plus Human Machine Interface (HMI)
     Siemens is available as an option
 Menu-driven operation through the human machine interface (HMI)
 To avoid unauthorized access to machine functions password levels are implemented
 PLC-controlled servo motors automatically set the output rate, the vial height and the water/air flow per vial size . All electrical components are installed in the electrical cabinet located in the base of the machine
 Piping system and electrical cabinet are installed inside the frame of the machine, resulting in a small footprint and a clean installation
 A vial-dedicated timing screw over the length of the machine captivates and transports the vial through the machine
 The vials ride on a narrow rail and rotate continuously during their travel in the machine
 Enclosing the aluminum cap between two opposed belts creates a seal that prevents the cleaning agent from entering the cap area and allows pressurized water for cleaning the entire vial body, including the bottom
 The machine is separated into the rinsing section and the drying section
 Rinsing is accomplished by low pressure water nozzles, cleaning the vials from the neck down (while they rotate)
 Drying can be accomplished by either compressed facility air or by an on-board air blower in the base of the machine
 Optional negative pressure can be obtained in the enclosure by installing an exhaust with HEPA-filter on the top of the unit
 An accident prevention hood or under pressurized hood with gloves ports is available
 All stainless steel, heavy duty construction with tempered glass windows and doors
