SP Industries, Inc

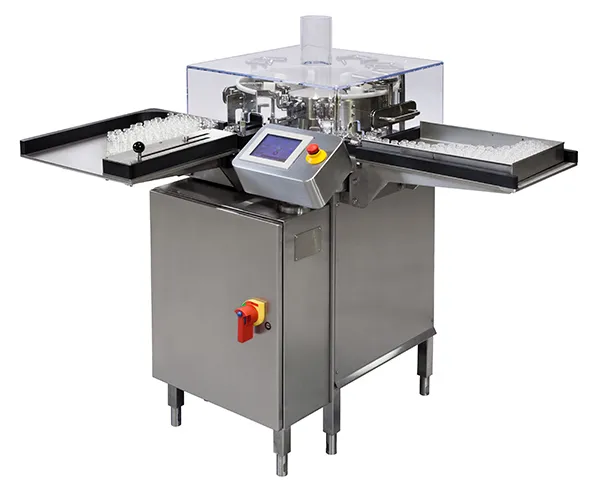

RW-250 Vial Washer

RW-250 Vial Washer

Dimensions127x114cm

PurposeLow speed, semi-automatic pharmaceutical and biotech applications

Vial Range2-100ml glass or plastic (change parts required)

OutputUp to 70 vials per minute

Changeover15-minute changeover to a different vial format

Features

- Typical batch size: 1,000-8,000 vials- 8 vial holders that hold up to 6 vials at the neck- A transparent cover permits visual verification of the washing process- Dedicated media manifolds (1 for water, 1 for air)- GMP design: All 304/316L stainless steel- Intrinsically designed for 3-log endotoxin reduction- Allen-Bradley Micrologix 1100 PLC that works in conjunction with an Allen-Bradley PanelView ComponentC400 Touch Terminal HMI- No penetrating nozzles, no glass breakage, less particulate generation- Self-draining after end of batch- Internal surfaces are electro polished- Orbital welding is used whenever possible- Piping system is designed to run from high to low to prevent water stagnation- Optional WFI-skid to supply the WFI at 80°C (no need for a WFI-loop)- Complete validation documents package available (FRS, DDS, FAT/SAT, IQ/OQ)
