RW-500 Vial Washer
RW-500 Vial Washer
Dimensions133x128cm
PurposeSmallest automatic vial washer and is designed for low-to-medium output pharmaceutical and biotech applications
Vial Range1-100ml (change parts required)
OutputUp to 120 vials per minute (dependent on the vial format)
Changeover20-minute changeover to a different vial format
Features
- Typical batch size: 10,000-25,000 vials- 8 vial holders that hold up to 6 vials at the neck- Rotary infeed table with automatic loading of the vials into the vial holders- A transparent cover permits visual verification of the washing process- Dedicated media manifolds (1 for water, 1 for air)- Recycling of WFI, intermittent spraying and automatic lid lift mechanism- GMP design: All 304/316L stainless steel- Main drive is servo-driven- Intrinsically designed for 3-log endotoxin reduction- Allen-Bradley Micrologix 1100 PLC that works in conjunction with an Allen-Bradley PanelView 600+ operator interface- Each vial format has an HMI selected “recipe” with specific settings for spray time and indexing time to help reduce water consumption- Water for injection (WFI) can be recycled, filtered and used a second time, further reducing water consumption- No penetrating nozzles, no glass breakage, less particulate generation- Self-draining after end of batch- Internal surfaces are electro polished- Orbital welding is used whenever possible- Piping system is designed to run from high to low to prevent water stagnation- Silicone seals are used throughout the piping system- Optional WFI-skid to supply the WFI at 80°C (no need for a WFI-loop)- Complete validation documents package available (FRS, DDS, FAT/SAT, IQ/OQ)

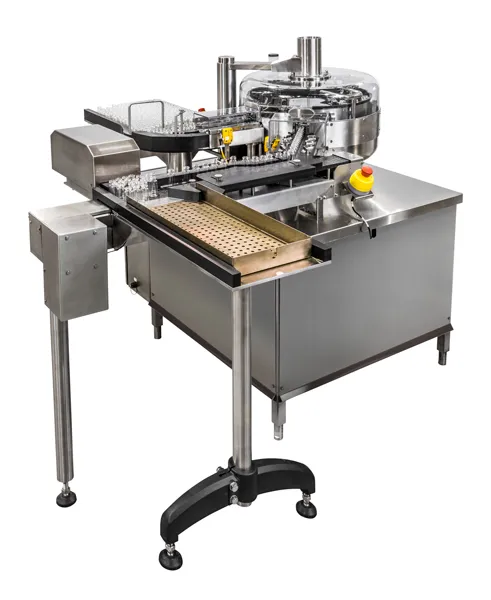

RW-500TL Vial Washer with Integrated Trayloader
Vial washing with automatic trayloading is made possible on the RW-500TL. An ideal batch vial processing system for low-to-medium volume output requirements. Vial range 2-100ml. Output up to 100 vials/minute. The trayloader does not require change parts. To maintain cleanliness, the outfeed of the washer and the trayloader can be placed under a Vertical Laminar Airflow Unit. Features include: "no-tray present, washer does not start-up" and "tray full, washer stops".
