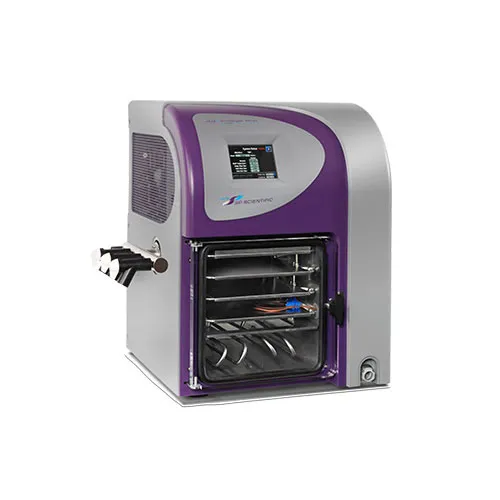

Freeze Dryer or Lyophilizer with Intellitronics Controller
The AdVantage Pro freeze dryer with Intellitronics™ Controller now offers users the benefit of Ethernet communication and email options. Monitor your cycle from anywhere you receive email! Get the convenience of a tray dryer in a benchtop unit.
Specifications
Shelf Temperature Control Range
XL: -40 to 60 °C
EL: -55 to 60 °C
Lowest Shelf Temperature
XL: -57 °C (50 Hz)
EL: -65 °C (50 Hz)
Shelf Pull-Down from 20 °C to -40 °C
XL: ≤ 40 minutes
EL: ≤ 30 minutes
Temperature Uniformity
± 1.0 °C
Lowest Condenser Temperature
XL: -67 °C (50 Hz)
EL: -82 °C (50 Hz)
Maximum Condenser Capacity
6 L
Maximum Ice Condensing Capacity in 24 hours
4 L
Maximum Deposition Rate
0.17 L/hour
Vacuum Rate of Rise
≤ 60 mT/hour (≤ .08 mbar/hour)
Number of Compressors
XL: 1
EL: 2
Compressor Horsepower
XL: 3/4
EL: 1/3, 3/4
System RefrigerantR
245fa, R508B
R508B, R407C
Utility requirements
Compressed Air (Stoppering Option Only)
60 - 90 psig (4.1 - 6.2 bar)
Approx. Peak Heat Generated (With Vacuum Pump)
XL: 5,000 BTU/h (1.5 kW)
EL: 7,000 BTU/h (2 kW)
Approx. Peak Heat Generated (Without Vacuum Pump)
XL: 4,000 BTU/h (1.2 kW)EL: 6,000 BTU/h (1.8 kW)
