Sysmex

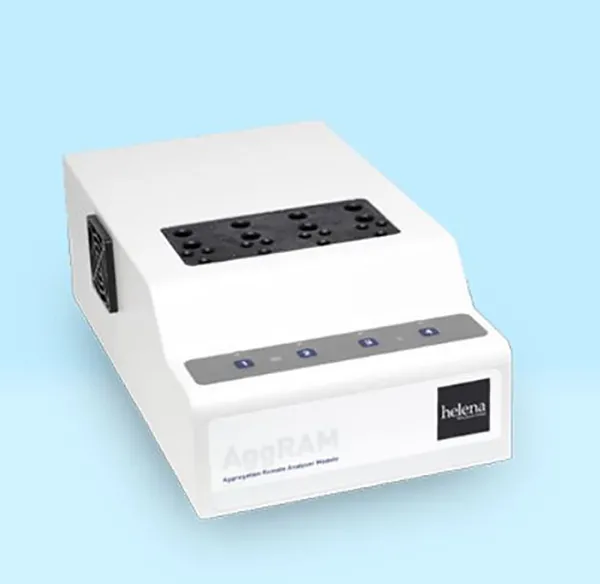

Helena aggRAM

Platelet Aggregation and Ristocetin Cofactor Analysis

• Flexibility
• fully optimised half volume settings
• Powerful data handling
• 4 or 8 patient samples per run
• Security through operator log on with password level protection

Specifications

• 0.0 to 2.0 O.D.
• 650nm
• Silicone coated glass Cuvette
• 3.5x4.0mm coated magnet stirrer bar
• Incubation and Reaction Temp 37°C +/- 1°C
• Reagent Incubation
• Graphics: -20% to 110% activity
• Operating Environment: Temp: 15°C - 30°C. Humidity: 10 - 80%
• Input Power: 220Vac, 50/60Hz, 1200 Watts max
• Dimensions: 152 x 254 x 432 mms (h x w x d)
• Weight: 6.75 Kg
• Windows® 2000 Operating System
• Bar Code Scanner Option
• RS-232 serial port
• Powerful Data Handling
• Store, recall, edit and print data
  • Automatic calculation with manual edit
• slope, secondary slope, lag phase, max% Agg, time to max, area under curve,
• Quality Control Program
  • Levy-Jennings charts based on Westgard rules
  • Levy-Jennings Reports
  • Up to 8 channels (4 per module)
