IXL Standard Checkweighers

IXL Standard Checkweighers

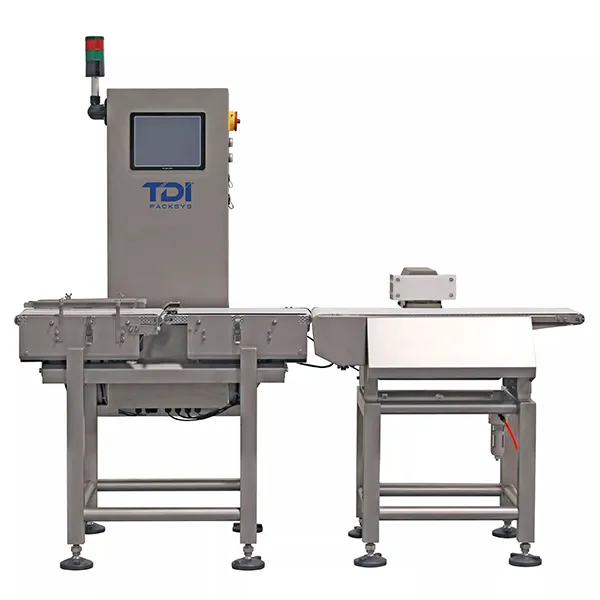

The IXL series of checkweighers from TDI Packsys encompasses a variety of high-performance models that are suitable for almost any inspection application. Using state-of-the-art German load cells and other componentry, the IXL series delivers accurate weight measurements in even the most demanding of processes.

Applications

Checkweighing systems can be used for virtually any product in any production process where ensuring accurate weight is necessary.

Available in both standard and high-speed configurations, IXL series checkweighers can weigh up to 330 products per minute, and can accommodate products weighing as much as 110 lbs (50kg).

Standard Features

• High speed, advanced German-built load cell – exceptional performance at speeds over 300 feet per minute
• Operator friendly LCD touchscreen HMI – save programs for over 100 pre-set products
• Multi-lingual operator controls: English, Spanish, Polish, Chinese and other languages upon request
• Standard USB data output (optional Ethernet)
• Infeed conveyor sections with 70mm tall stainless-steel guide rails ensure proper product orientation as it traverses the scale platform (custom heights available)
• Integrated rejection conveyor for the auto-exclusion of any out of spec product
• Fully welded frame constructed of polished, mirror finish heavy gauge 304 stainless steel
• Premium Habasit conveyor belts on all platforms. Upgrade to metallic chain link at upcharge.
• Adjustable, self-leveling feet
• 3-tier light tree, belt stop and/or audible alarm

Why We Are the Best

All of our checkweighers are easy to clean, provide full-color touchscreen controls for each operation, and use high-sensitivity load cells or scales that do not need daily calibration. Plus, TDI Packsys backs every piece of equipment with unmatched support, including annual testing, operator training, emergency service, calibration and certification to ensure your system remains in complete and continual compliance with all applicable regulations.

Spec Table
