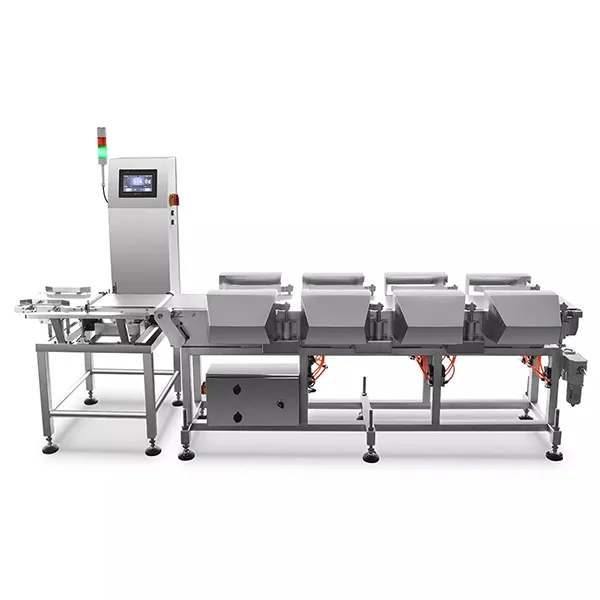

Multi-Sorting Checkweighers
Multi-sorting checkweighers from TDI Packsys are designed to automatically weigh and sort various products in continuous packaging processes. With high-accuracy weighing, and integrated separation mechanisms customized for your specific process and product, these multi-sorting checkweighers completely replace the need for manual sorting of products by weight. Multi-sorting checkweighers reduce labor costs, improve production efficiency, and optimize the production process.
Applications
Multi-sorting checkweighers from TDI Packsys can be used to automatically classify and sort products by weight for a variety of raw and packaged product types. These systems are commonly used for fish, seafood, beef, poultry, frozen foods, etc.
In addition to the automatic sorting function, multi-sorting checkweighers can aid in statistical analysis, quality management, and cost control for your entire production process.
Standard Features
Spec Table
Name
Conveyorized Multi-sorting Checkweigher
Model
RWG-SG4
Main Construction
304 Stainless Steel, Matte Finish
Control Panel
9.5” Touchscreen Interface
Detection Range
0.2 – 5 kilograms (0.04 – 11 pounds)
Accuracy
+/- 1.5 gram
Scale Interval
0.2 gram
Product Memory
Up to 100 different products
Speed
Variable, up to 70 meters/minute (230ft/min)
Product Width Maximum
Customizable
Product Length Maximum
Compressed Air
58 to 116 psi
Connectivity
USB and Ethernet
Power
110v or per customer request
Conveyor Height from Floor
IP Rating
IP 66
