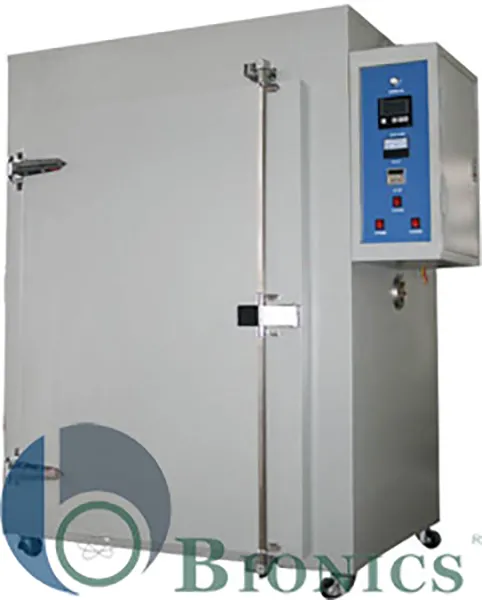

Clean Room Oven
Clean Room Oven
Clean Room Ovens by Bionics Scientific meet Class 100 and Class 1000 cleanroom environment, where minimizing or complete elimination of particle contamination is prime requisite. Our clean room cabinet ovens are designed to improve quality of pharmaceutical research and other industrial production under clean conditions. All these units are designed with either vertical or horizontal air flow patterns with assurance of consistent thermal performance under all sample loading conditions. On request, we also make additional ports for nitrogen gas purging and vacuum.
Features
|
Ideal for Class 100 & 1000 clean room process
|
Temperature ambient +10°C to +200°C
|
|
Extremely safe for samples and operator
|
Easy to clean interior chamber
|
|
Fitted with branded HEPA filters
|
Digital Display and microprocessor controller
|
|
Excellent air flow engineering
|
Over temperature protection
|
|
Ports for nitrogen gas purging
|
Fully assembled and factory tested
|
Detailed Description
Construction
Our clean room ovens are ruggedly designed; generally exterior wall is made of powder coated Mild steel and inner chamber is made of 304 grade stainless steel, as an option 316 stainless steel can be used for exterior.
Temperature
The temperature range of clean room ovens is ambient +10°C to 200°C.
Controls
Our standard clean room oven units are fitted with digital temperature controller and digital timer. Desired temperature and time are set using controller, heating is off after reaching set temperature.
Door
Depending upon size or chamber volume, clean room oven is designed with single or double doors. Doors are insulated and fitted with sturdy handle and door lock. As option, we can use door limit switch, which switches off the machine if door is opened or machine does not start if door is not closed properly.
Filter
Our Clean room ovens are available with and without HEPA filter modules. Models without HEPA filters meet the requirements of Fed. Std. 209E for a Class 100 environment, other units that come with HEPA filters can easily exceed class 100 requirements.
Optional
Being a manufacturer, we provide our customers facilities of modifications or additional accessories in their clean room oven. Our scope of customization includes type of controllers, heating elements, MOC, and ports for nitrogen gas purging and vacuuming.
Cleanroom Oven Specifications
|
Model
|
BST/CRO-072
|
BST/CRO-270
|
BST/CRO-480
|
BST/CRO-600
|
BST/CRO-720
|
|
Inner chamber WxHxD (mm)
|
450x400x400
|
600x900x500
|
800x1000x600
|
1000x1000x600
|
1200x1000x600
|
|
Exterior chamber WxHxD (mm)
|
870x1200x550
|
1050x1650x740
|
1200x1700x840
|
1400x1750x840
|
1750x1750x840
|
|
Temperature
|
Range: Ambient +10°C to +200°C
Accuracy: ±0.3°C
Uniformity: ±1°C
Resolution: 0.1°C
|
|
Clean class
|
Class 100 / class 1000
|
|
Construction
|
Exterior Chamber: Powder Coated MS
Interior Chamber: 304 stainless steel plate
Insulation: PU & Fiberglass wool
|
|
Filters
|
HEPA Filters
|
|
Air Circulation
|
Fan or Re-circulating Blower
|
|
Heating Element
|
Kanthal A1 Wire
|
|
Door
|
Insulated solid door with silicon rubber seal
|
|
Controller
|
Programmable Temperature and Time Controller
|
|
Shelves
|
Nickel Chrome Plated Steel Wire Shelves
|
|
Safety Devices
|
- Overheating circuit-breaker
- Compressor overload protection
- Control system overload protection
- Breakdown indicator light
|
|
Optional
|
- Stainless Steel Exterior
- Humidifying system
- Nitrogen inlet port
- Differential air pressure switch
- Door limit switch
- Chart recorder
- Pressure gauge
- Stainless Steel shelves
- Perforated SS Shelves
|
|
Power supply
|
220V 50Hz
|
