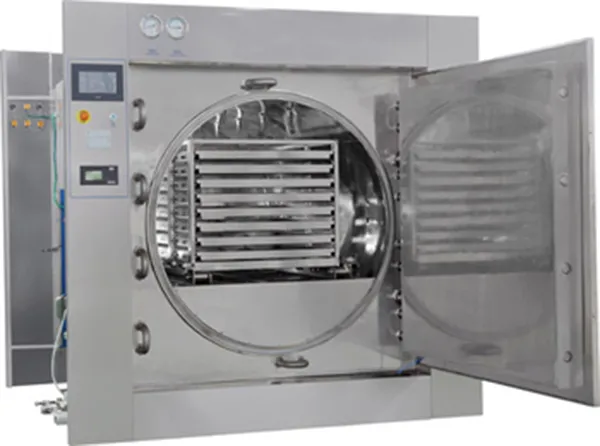

Rotary Sterilizer
Bionics Scientific offers a comprehensive range of rotary sterilizers that are widely used in pharmaceutical and food industries for sterilization for suspension and emulsion applications. Working based on saturated steam sterilization, these continuous rotary sterilizers fulfill GMP and FDA requirements. The rotation speed is adjustable and controlled via magnetic drive unit inside of unit.
We have designed our rotating sterilizers in such a way so that the operator can use the machine in very easy and safe way. The whole unit is made of high grade stainless steel, which ensures long service life without corrosion on the surface. Doors are heavy duty in nature and electrically balanced ensure safe operation every time you load and unload the trays. Our rotary sterilizer machine is fitted with PLC and touch screen in order to offer fully automatic functions throughout the process. Thermal printer is also attached to record and print parameters, temperature, sterilization cycles etc.
Features
Meet GMP & FDA requirements
Meet pharmaceutical & food industry standards
Digital readouts of all parameters
304 / 316 stainless steel construction
Thermal printer
Total concealed wiring
Automatic door locking mechanism
Vibration and thermal shock resistant
Specifications:
Model
Inner Chamber (DIA. × L) mm
Overall Size
(L× W× H) mm
Steam Consumption kg /cycle
Water Consumption
kg/cycle
BST-XZ-0.6
1100 × 1580
1825× 1905× 1850
90
1500
BST-XZ-1.2
1250 × 2300
3460× 1980× 2000
170
4500
BST-XZ-2.5
1400 × 3080
3200× 2130× 2120
300
7000
BST-XZ-5.0
2000 × 3100
3500× 2800× 2800
580
15000
BST-XZ-8.0
2000 × 4850
5250× 2800× 2800
700
18000
BST-XZ-10
2500 × 4100
4600× 3200× 3300
850
30000
BST-XZ-12
2500 × 4800
5300× 3200× 3300
1000
35000
Steam Pressure
0.4 – 0.6 Mpa
Design Pressure
0.17 – 0.27 Mpa
Water Pressure
0.2 – 0.3 Mpa
Working Pressure
0.15 – 0.27 Mpa
Compressed Air Pressure
0.5 – 0.7 Mpa
Working Temperature
134°C
Rotation Speed
1 - 20 rpm
Door
Electrically balanced door
Construction
Stainless steel
Control
PLC and Touch screen
Power Supply
AC 380 Volts / 50 Hz. 3 Phase
