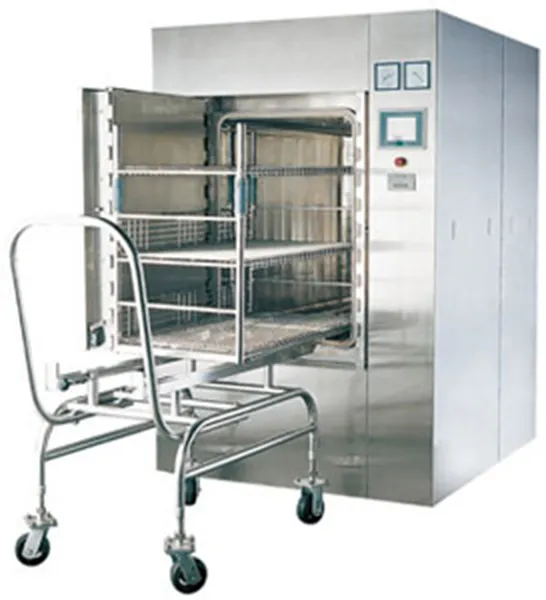

Dry Heat Sterilizer - Depyrogenation Oven
Dry Heat Sterilizer - Depyrogenation Oven
Dry Heat Sterilizers are designed to meet Sterilization and Depyrogenation requirements in pharmaceutical and biotechnology industries. Dry Heat Sterilizers (Sterile Hood) is also used for sterilization of glass wares and all glass syringes. As the name suggests, these sterilizers use dry heat (hot air) for sterilization. Dry Heat Sterilization is the most accepted technique, which is employed to sterilize products that are moisture sensitive and medicinal in nature that cannot be sterilized with steam. Dry heat sterilization or depyrogenation is a process, which is used to reduce pyrogen level with the use of hot air in temperature ranges from 160°C to 300°C. Dry powder drugs, oil, waxes, soft hard paraffin silicone, injections, implants, ointment, sharp objects, metal parts etc. are some of examples that require dry heat sterilization or Depyrogenation.
Applications
|
Ampoules Vials
|
Metal and glass Vials
|
|
Schering bottles
|
Aluminum caps
|
|
Injection bottles
|
Infusion bottles
|
|
Filters
|
Textiles
|
|
Garment
|
Bandage
|
|
Gauze
|
Stoppers
|
|
Metal containers
|
Equipment parts
|
|
Dry powder drugs
|
Oil and wax
|
|
Soft hard paraffin silicone
|
Ointment
|
Features
|
Meet GMP & FDA requirements
|
Meet Class 100 (ISO 5) standards
|
|
Meet pharmaceutical industry standards
|
304 / 316 stainless steel construction
|
|
Uniform air circulation for efficient sterilization
|
Total concealed wiring
|
|
Digital readouts of all parameters
|
Thermal printer
|
|
High temperature HEPA filter
|
Vibration and thermal shock resistant
|
|
Uniform heat distribution
|
Automatic door locking mechanism
|
Innovative Technology
Experience the improved technique of dry heat sterilization with Bionics Scientific, a leading manufacturer and supplier of dry heat sterilizers (Depyrogenation Ovens) based in New Delhi, India. Dry heat sterilizer machines manufactured by us are perfect for sterilization of pharmaceutical products, where these systems are utilized to sterilize powder and oils, glassware, vessels and metal parts etc.
All our dry heat sterilizers comply with Quality Assurance procedures, which require validation that dry heat sterilization and depyrogenation have been achieved accurately. These machines can be bought at competitive price with variety of options and accessories.
Our dry heat sterilizer or hot air sterilizer units accept cGMP and FDA standards and guarantee Class 100 entire temperature phase (heating, sterilizing / depyrogenation and cooling). Excellent temperature uniformity is achieved in the entire sterilization chamber. The Different cycles of DHS includes Exhaust cycle, pre-sterilization, sterilization, stabilization, cooling, cycles. These dry heat sterilization systems are equipped with PLC operated fully automatic control panel, which controls all these cycles automatically. Strip chart recorders and data logger with printers are added features that enable operators to keep hard records of their every sterilization process.
Scope of Customization
As we have in-house manufacturing of dry heat sterilizers (hot air sterilizer), we offer our customers a wide range of customization facilities essential to make your work easier, while ensure optimum performance and user flexibility in the most demanding conditions. Our customization work includes Class 100 or Class 10,000 conditions, chamber size (up to 5000 liters), temperature range, loading configurations, process control and many more.
Specifications:
|
Model
|
BST/DMH-0.22
|
BST/DMH-0.64
|
BST/DMH-1.2
|
BST/DMH-1.8
|
|
Capacity
|
225 Liters
|
640 Liters
|
1200 Liters
|
1800 Liters
|
|
Temperature range
|
Room temperature to 300°C
|
Room temperature to 300°C
|
Room temperature to 300°C
|
Room temperature to 300°C
|
|
Clean Level
|
Class 100
|
Class 100
|
Class 100
|
Class 100
|
|
Heating Power
|
9 KW
|
15 KW
|
22 KW
|
28 KW
|
|
Circulating fan power
|
0.75 KW
|
2.2 KW
|
3.0 KW
|
4.0 KW
|
|
Supplementary fan power
|
0.18 KW
|
0.18 KW
|
0.25 KW
|
0.25 KW
|
|
Moisture fan power
|
0.18 KW
|
0.25 KW
|
0.37 KW
|
0.75 KW
|
|
Circulation fan flow
|
3500 m3/h
|
4600 m3/h
|
5500 m3/h
|
6300 m3/h
|
|
Supplementary fan flow
|
300 m3/h
|
300 m3/h
|
408 m3/h
|
408 m3/h
|
|
Operating Chamber
(W × D × H) mm
|
600 × 500 × 750
|
800 × 800 × 1000
|
1000 × 1000 × 1200
|
1000 × 1200 × 1500
|
|
Outer Cabinet
(W × D × H) mm
|
1650 × 900 × 1750
|
1850 × 1200 × 1950
|
2050 × 1400 × 2150
|
2050 × 1600 × 2450
|
|
Control system
|
HMI based fully automatic functions
|
|
Printer
|
Thermal printer
|
|
Cooling
|
Water cooling system
|
|
Construction
|
304 Stainless steel (316 optional)
|
|
Doors
|
Leak proof doors w/ pressurized locking system
|
|
Air Supply
|
Pressure module with pre filter and HEPA filter to ensure fresh filtered air entry
|
|
Optional
|
- Strip chart recorder
- Provision to attach laser jet printer
- Trolley
- Trays
- Wire baskets
- Additional temperature probes
|
|
Note:
|
Dimensions of Class 100 and Class 1000 dry heat sterilizers are same
|
