Pass Box

Pass Box

Pass Box

Maximize your production efficiency with clean room equipment! We are a pass box manufacturer company based in India and have a long successful experience in designing, manufacturing and installing such equipment all over India. Here at Bionics Scientific, we are presenting static pass box and dynamic pass box equipment at factory price. These pass boxes are custom designed, rugged, made of high grade stainless steel and can be installed in a number of ways, depending on the wall or door that will support them. These pass boxes are supplied in pharmaceutical, semiconductor and food industries to meet the most demanding controlled environment conditions.

Features:

Precision designing and finish

High grade stainless steel construction

Choice of mechanical or electrical interlocked

Static and Dynamic Pass Box models

Floor and wall mounted design

Maximum chemical resistance construction

CE and ISO certified

UV light along with hour meter

Buzzer indication to know the material is kept inside

Indicating lamp to know the door lock-unlock condition

Magnehellic gauge for measuring pressure drop

Low Vibration and Noise

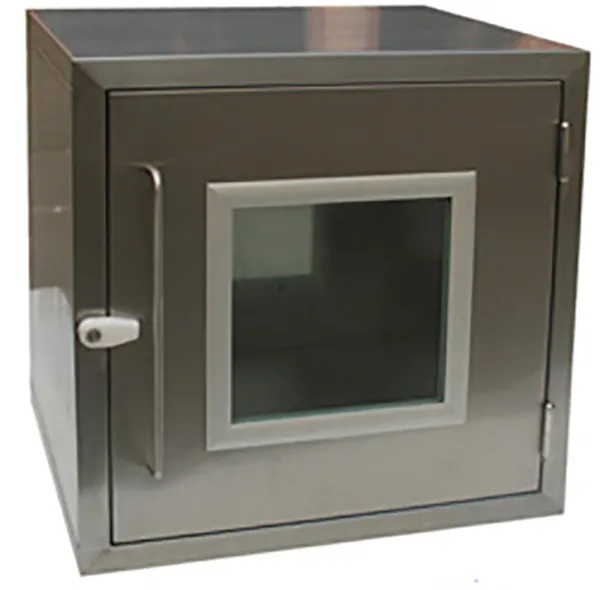

Static Pass Box:

Bionics Scientific presents its static pass box equipment, fabricated with powder coated 304 / 316 grades stainless steel and high quality components and are capable of eradicating pollutants completely from the air. These static pass boxes are installed in manufacturing areas and filter the incoming air in order to keep the air free from dust and other contaminants. With UV light along with hour meter, Fluorescent light, buzzer indicator to know the material is kept inside and indicating lamp, these static pass boxes provide excellent working performance in the clean room unit.

Specifications:

Product

Static Pass Box

Construction

Stainless Steel 304 / 316 / 316L

Door

Solid door w/ mechanical or electrical interlocked

Window

Tempered Glass

Accessories

Hour meter

Electricals

Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps

Window

Tempered Glass

UV Lamp

Optional

HEPA Filter

Optional

Filtration efficiency

≥ 99.99% @ ≥ 0.3μm

Power Supply

220 / 230 Volts

Certifications

CE and ISO

Dynamic Pass Box:

Dynamic Pass Box equipment are made of powder coated high grades stainless steel (304 / 316 / 316 L) with international quality standard components including mechanically or electrically interlocked doors and UV light. These dynamic pass box equipment are equipped with suction filter made of stainless steel with 95% down to 5µ efficiency (EU-4rating) and supply filter made of aluminum with 99.999% down to 0.001 µ (EU-14 Rating.) An interlock guard system controls the inlet and the outlet of PASS BOX not be opened at the same time, in order to prevent the cross contamination.

Specifications:

Product

Dynamic Pass Through Box

Construction

Stainless Steel 304 / 316 / 316L

Door

Solid door w/ mechanical or electrical interlocked

Window

Tempered Glass

UV Lamp

Optional

HEPA Filter

Optional

Suction Filter

Stainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.)

Supply Filter

Aluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.)

Blower

Branded Heavy duty

Noise

<78

Power Supply

220 / 230 Volts

Accessories

Hour meter, Magnehelic / Minihelic Pressure Gauge

Electricals

Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps

Air Shower Facility

Optional

Cleanliness

Class 100

Certifications

CE and ISO

Applications:

Pharmaceutical industries

Chemical research laboratories

Electronic industry

Semiconductor production

Food processing industry
