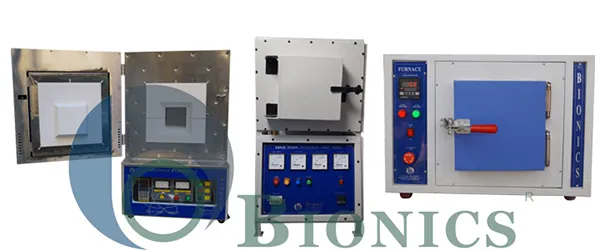

Muffle Furnace
Muffle Furnace
Bionics Scientific is a Delhi based India's leading manufacturer of muffle furnaces for laboratory use with temperature range 800°C to 1800°C. As required, we provide both readymade (ready stock) and customized muffle furnace systems to our customers worldwide. These laboratory muffle furnace units are utilized in general purpose heating in laboratories, ashing tests on wool, rubber, fibers or fabrics, heat treatment requirements for gears and various research facilities in chemistry and physics.
Muffle Furnace Applications:
|
Ignition tests
|
Gravimetric analysis
|
|
Heat treating steel parts and Gears
|
Heat treating Gears
|
|
Coal sampling
|
Quench testing
|
|
Organic and inorganic ashing
|
Research facilities in chemistry
|
|
Chemical analysis
|
Annealing loss determination
|
|
soils & aggregates cement Testing
|
Development of coatings and ceramics
|
|
Glass blowing lab
|
Rice laboratory
|
|
Plastic tensile strength test
|
Stoneware samples firing
|
Features:
|
Sturdy construction for long term use
|
Compact in design and space saving
|
|
Available with 800°C to 1800°C temperature
|
Safe and trouble free performance
|
|
Microprocessor PID controller
|
Over temperature and short circuit breaker
|
|
High ceramic fiber blanket and board insulation
|
Ventilation or chimney at the back
|
|
Only branded heating elements are used
|
Uniform heating inside chamber
|
|
CE and ISO marked
|
Comply to DIN and ASTM standards
|
Temperature Range:
To meet unique needs of every application, our muffle furnaces or box furnaces are available in temperature range from 800°C to 1400°C (800°C, 1100°C, 1200°C and 1400°C), in addition, we also design and manufacture high temperature muffle furnace up to 1800°C (1500°C, 1600°C, 1700°C, and 1800°C)
Usability & Performance:
Usability is one of the major factors that one should look into while buying muffle furnace and with Bionics® Muffle Furnace systems you experience unmatched convenient working performance. All our electric muffle furnaces feature rust and corrosion free stainless steel housing, compact and light weight construction and branded heating elements and programmable PID controller, ensure safe operation every time.
Safety Features:
These muffle furnaces are microprocessor controlled programmable muffle furnaces that offer easy and safe operation even at high temperature. These systems are designed with your safety in mind. Multi-layered insulation keeps external surfaces (cabinet) cool to the touch. Door safety switch (optional accessory) stops power to heating elements when door is opened.
Data Recording
In order to keep the record for processing, these muffle furnaces can be optionally fitted with Digital Data Logger, Printer and Temperature Chart Recorder.
Technical Specifications:
|
Model
|
BST/MF/900
|
BST/MF/1100
|
BST/MF/1450
|
BST/MF/1800
|
|
Max. Temperature
|
900°C
|
1100°C
|
1450°C
|
1800°C
|
|
Working Temperature
|
800°C
|
1000°C
|
1350°C
|
1700°C
|
|
Heating Element
|
Kanthal A-1
|
Silicon Carbide (SiC)
|
Molybdenum Silicide (MoSi2)
|
|
Temperature Accuracy
|
+/- 1°C (+/- 1.8°F)
|
|
Temperature Controller
|
PID controller
|
|
Display
|
LED / LCD Display
|
|
External Chamber Construction
|
MS w/ Powder Coating / 304 Grade Stainless Steel (Optional)
|
|
Internal Chamber Construction
|
Ceramic Board & Grooved Refractory Chamber as per Temp. Requirement
|
|
Insulation
|
Ceramic wool insulation
|
|
Alarm
|
Audible & Visual type
|
|
Power Supply
|
220 / 440 Volts
|
|
Certification
|
ISO, CE & GMP
|
|
Stabilizer
|
As standard
|
|
Optional Accessories
|
- Provision for Printer
- Data logger
- Safety switch on door
- Temperature Chart Recorder
- Extra port for gas - Extra heating element & rod with clips
- Extra thermocouple
- Tongs
- Gloves
|
