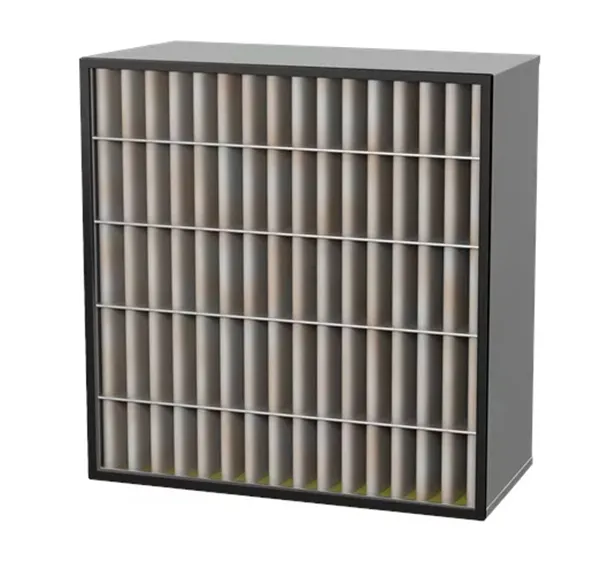

GigaPleat NXDP (DH)

GigaPleat NXDP (DH)

A deep pleated molecular filter with customizable metal frame fitted with high cleanliness embedded adsorbents for removal of VOCs, acids and bases. Suitable for cleanroom air recirculation units and ceiling installation where multi contaminant removal is required.

• Multiple media types can be combined into the same filter
• Low pressure drop
• Low outgassing components
• Individually VOC outgassing tested
• High media cleanliness
• Predicted removal efficiency and lifetime by Camfil's proprietary software
• Typical target gases: VOCs, acids, bases, dopants, refractories, ozone

SPECIFICATIONS

APPLICATION

Clean room recirculation air, clean room make up air

FILTER FRAME

Stainless steel, Galvanised steel

MEDIA

Activated Carbon, Impregnated Activated Carbon

MAX TEMPERATURE (°C)

40ºC

RELATIVE HUMIDITY

30% - 70%

GASKET

Polyurethane, EPDM

SEALANT

Polyurethane

PARTICLE CLEANLINESS

ISO Class 6

COMMENT

Gasket Position: 01 - downstream, 10 - upstream

Outgassing: Individually outgassing tested for VOC emissions
