CAMFIL

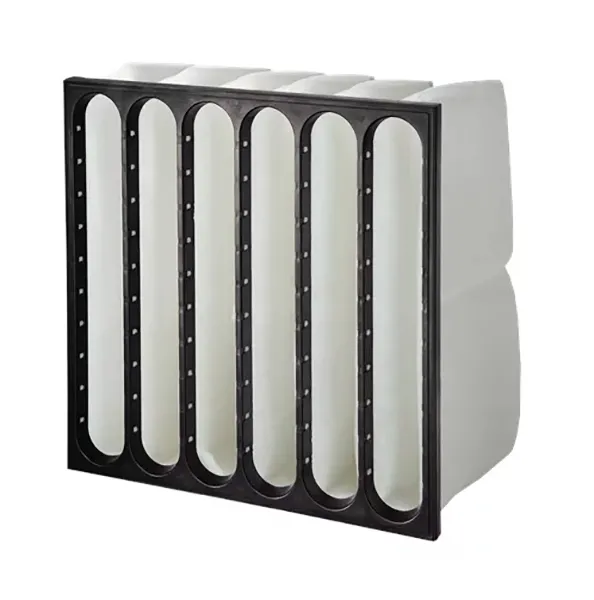

Hi-Cap ProSafe Bag Filter

Hi-Cap ProSafe Bag Filter

Bag filters developed for areas that require the highest hygienic demands. These filters are recommended for critical areas such as food and beverage as well as for pharma applications. The Hi-Cap ProSafe range comes with compliance to EC1935:2004, ISO846 and VDI6022 in Coarse 60% according to ISO16890.

• ProSafe certified for Food & Beverage, Life Science or close to product applications
• Chemically resistant to decontamination, inactivation and cleaning agent
• Microbial inert components acc. to ISO 846
• Compliant to VDI 6022
• Free of bisphenol-A, phthalate and formaldehyde
• Tested for food safety acc. to EC 1935:2004
• Manufactured and packed in a controlled environment
• Packaging suitable for cleanroom unpacking

SPECIFICATIONS

APPLICATION

Prevention of dust and dirt build up on heating/cooling coils within ventilation systems

FILTER FRAME

Plastic

MEDIA

Synthetic

MAX TEMPERATURE (°C)

70ºC

RELATIVE HUMIDITY

100%

MAX FINAL PRESSURE DROP, EN 13053

Initial pressure drop + 50 Pa or initial pressure drop x3 (whichever is lower)

SEALANT

Polyurethane

DIMENSION STANDARD

Filter front dimensions according EN 15805

INSTALLATION OPTIONS

Front and side access housings and frames are available

MAX AIRFLOW

1,25 x nominal flow

COMMENT

Packing: Hygienic packing in plastic bag. Outer packing: Environmental friendly cardboard box, easy to carry
