CAMFIL

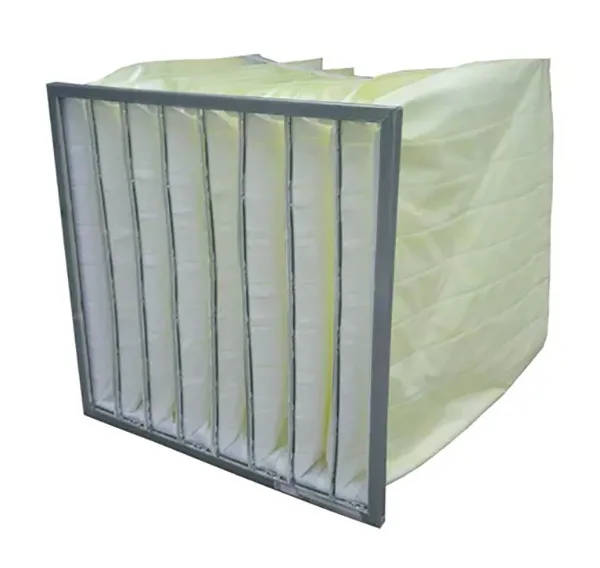

S-Flo U Bag Filters

S-Flo U Bag Filters

• Multi-pocket bag filter
• Comprehensive range of standard sizes
• Robust metal header frame
• Unique pocket design
• Large surface area
• Controlled media spacing (CMS)

SPECIFICATIONS

APPLICATION

Air conditioning applications

FILTER FRAME

Galvanised steel

MEDIA

Synthetic

MAX TEMPERATURE (°C)

70°C

RECOMMENDED FINAL PRESSURE DROP

450 Pa

INSTALLATION OPTIONS

Holding frames: Front and side access housings and frames are available, Type 8 and FC Housings

COMMENT

Recommended final pressure drop: 450 Pa (suggested economical change point 250 Pa)

Fire rating: UL 900

FILTER CLASS ASHRAE

MERV 11
