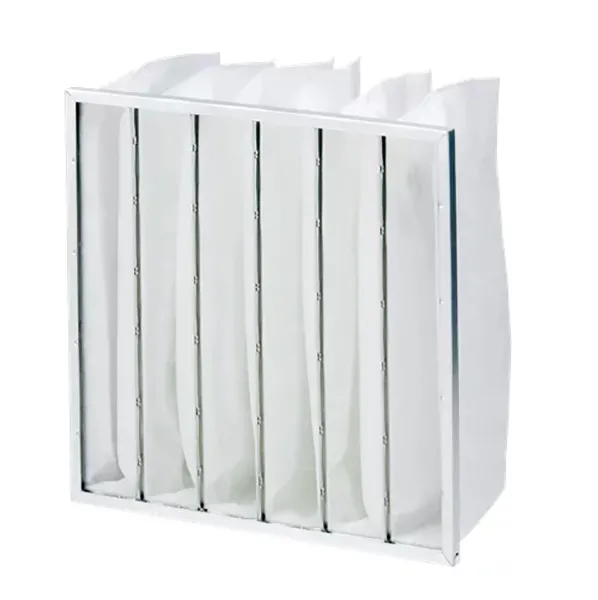

Hi-Cap Bag Filter

Hi-Cap Bag Filter

Bag filter for prefiltration applications with steel frame. With it's optimized filter area and conial filter bags, the lifetime of this bag filters is advanced. Available in 3 different bag lengths in Coarse 60% according to ISO16890

• Low initial pressure drop
• Flat pressure drop curve
• Comprehensive range of standard sizes
• Innovative pocket design for optimum air distribution
• Conical pockets

SPECIFICATIONS

APPLICATION

Prevention of dust and dirt build up on heating/cooling coils within ventilation systems

FILTER FRAME

Galvanised steel

MEDIA

Synthetic

MAX TEMPERATURE (°C)

70°C

RELATIVE HUMIDITY

100%

MAX FINAL PRESSURE DROP, EN 13053

Initial pressure drop + 50 Pa or initial pressure drop x3 (whichever is lower)

DIMENSION STANDARD

Filter front dimensions according EN 15805

INSTALLATION OPTIONS

Front and side access housings and frames are available, Type 8 and FC Housings

MAX AIRFLOW

1,25 x nominal flow

COMMENT

Fire rating: DIN 53438 class F1
