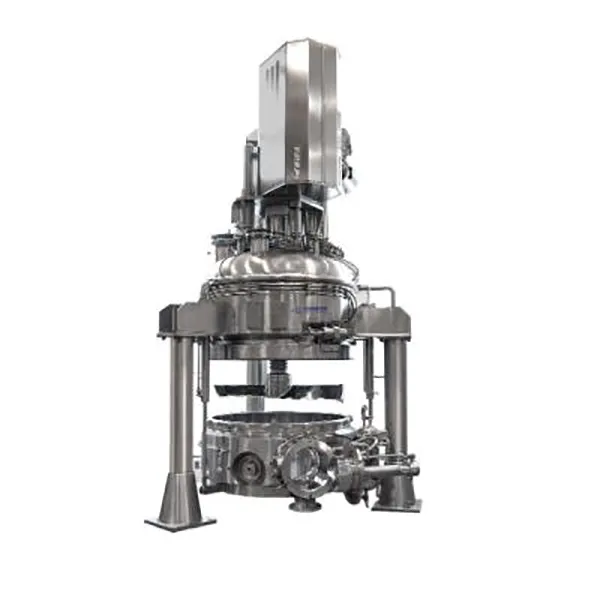

Agitated Vacuum Pan Dryer

Agitated Vacuum Pan Dryer

Turbodry® - series TD 0.8/1.1 - TD 40/60

The Turbodry® pan dryer has proven to be excellent for the drying of sensitive, pasty and other “difficult” products that pass through a highly viscous stage during the drying process. Excellent product discharge and shortest cycle times.

Designed for frequent product changes with excellent cleanability using CIP systems, simple validation. Suitable for use with microwaves for optimum drying performance.

Ideally suited for the installation of isolator systems for contained discharge, sampling and heel removal.

Technical data

Special properties for the customer’s benefit:

• Using spray balls a cleaning fluid is sprayed onto all product wetted internal surfaces for the internal cleaning of the equipment in between individual batches or for product change over. This provides for full and efficient cleaning of the dryer interior.calculation, design and manufacture are in compliance with Pressure Equipment Directive 97/23/EG or/and ASME U-stamp as well as with cGMP and FDA guidelines
• EG type examination certification 03ATEX0246X in accord with PED 94/9/EG or with UL-approved electrical components for operations in class 1, division 1 or 2, group C & D environment
• double mechanical seal, externally interchangeable, gas-lubricated (lift-off), dry running contact (contacting sliding surfaces) or liquid-lubricated
• sampler valve
• hydraulic pre-piping made of stainless steal, pre-wiring on terminal box made of stainless steal
• integral CIP-systems

Options:

• additional heating with microwaves to reduce the drying process
• pressure-resistant and sterile versions, isolators (glove box), DQ, IQ, OQ qualification
• autonomic PLC control or connected to PMSX, heavy current box
