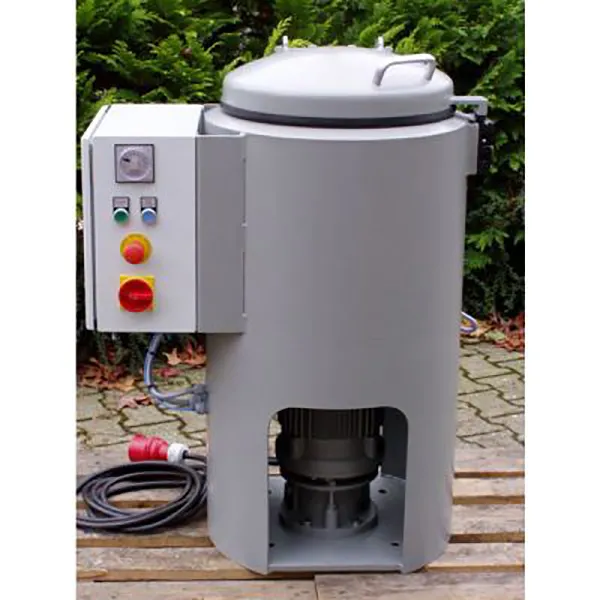

Vertical multipurpose centrifuges
Vertical multipurpose centrifuges
Series V 300 - 700 TM
The HEINKEL Multipurpose centrifuges V 300 - V 700 TM are known as robust, economical and reliable centrifuge. Fields of application are the de-oiling of parts or chips and drying of bulk parts, further to oiling or impregnation of bulk goods.
Special properties for the benefit of the customer
- Rugged, long life design based on the modular principle
- Very simple to operate - optionally to be improved through abasket lifting device
- Speed control
- Flexible deployment directly at the place where the chips are produced
- Maintenance friendly
Filling
When the housing lid is opened, the perforated basket is lifted out of the centrifuge by means of a lifting device and hoisting device and placed on the floor or on a filling device.
The basket is now filled again with the centrifuging material and lifted back into the chip centrifuge.
Centrifuging
The centrifuging process is started with a closed housing lid, a pre-selected basket speed and centrifuging time. The centrifugal force spins off the adhering fluid from the chips, the fluid leaves the perforated basket through bore-holes in the basket shell and is collected in the filtrate housing.
Discharging the basket
After the centrifuging time has ended, the housing lid is opened, the perforated basket lifted out and emptied by tilting into a ready container.
