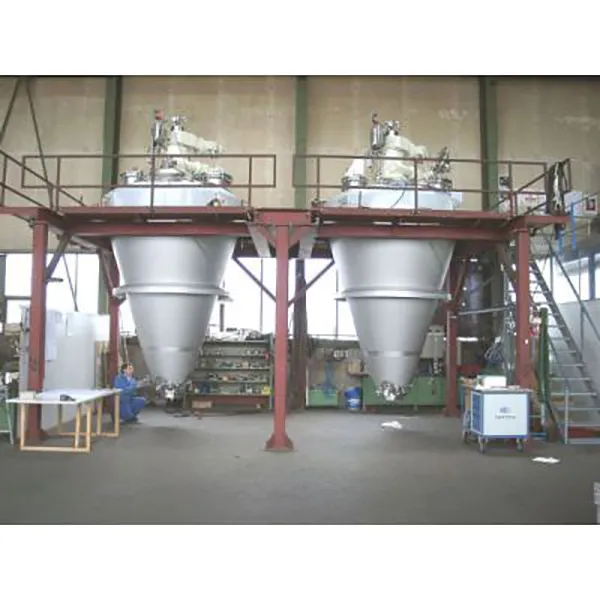

Conical Screw Vacuum Dryer
Conical Screw Vacuum Dryer
Series MF 010 - MF 600
The conical screw dryer is a vacuum contact dryer that is particularly suitable for drying hazardous and toxic products containing solvents or water, to a very low final moisture content, due to its closed design and indirect product heating.
As a result of its unique, very gentle mixing characteristics, even mechanically sensitive products are not destroyed; the product quality after the drying process is reproducible and as good as that of the initial product, whereas the driving force required is very low. The achievable, high vacuum ensures low drying temperatures (a clear advantage when drying temperature-sensitive products), good heat transfer and short drying times, while at the same time requiring little energy. The short drying times and the high level of the fully closed system make the conical dryer the best choice in cases in which environmental and/or product requirements are strict.
A directly fitted filter retains the dust particles in the processing space. Complete discharge and easy output ensure that you can continue to process your valuable products without a loss. Not just the solids, but also humidity and solvents can be recycled by the vacuum unit that has been integrated into the closed containment system.
Drive concepts for the conical screw dryer
The BOLZ-SUMMIX conical screw dryer and mixer both use the tried and trusted system of a rotating, self-supporting mixing screw. It is only attached at the top to a rotating swivel arm, which moves it as close as possible along the walls of the container, thus ensuring intensive but gentle mixing of both powders and other, comparable bulk goods.
The complete drive unit consists of a drive system with separate motors for the arm and the screw, located at the top and centrally within the lid. The easy maintenance and exchangeability of the systems was one of the main specifications for the standardisation and design of the BOLZ-SUMMIX conical mixers and dryers.
Our modular and cartridge constructions for seals and bearings, together with the robust construction of the drive and swivel arm, ensure maximum availability and minimum downtime. The drive principle can be implemented either by means of a bevel gear or a belt drive. Both are proven technologies that have been used with great success in many installed systems. Each design has its own, special characteristics, its own advantages and a wide range of applications.
