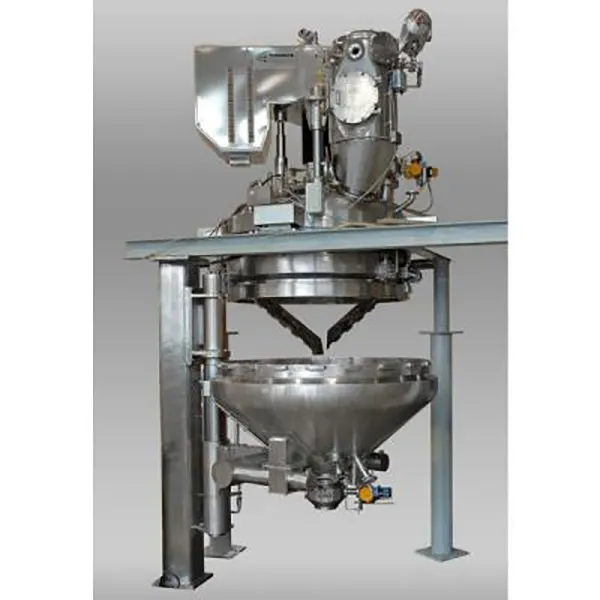

Conical Central Shaft Dryer

Conical Central Shaft Dryer

Condry® - series TDC 25 - TDC 15000

The Condry® conical bottom agitated vacuum dryer was developed to process a wide variety of products. The machines have proven to be particularly suited for the drying of heat sensitive products and product with fragile crystal structure and thus sensitive to shear forces.

The conical bottom allows for full product discharge characteristics. Designed for frequent product changes with excellent cleanability using CIP systems, simple validation.

The conical vessel bottom, narrow agitator to wall clearances, a special agitator blade design and the option for microwave heating makes this dryer the most versatile and efficient with a the best possible drying performance.

Technical data

Special properties for the customer’s benefit:

• Calculation, design and manufacture in accordance with PED 97/23/EC or/and ASME pressure vessel code, Section VIII with U-Stamp as well as in compliance with cGMP and FDA guidelines.
• EC type examination certificate 03ATEX0245X per the 94/9/EC directive or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C & D environment.
• Conical bottom for improved dry product discharge
• Double mechanical seals, externally interchangeable, dry running contacting or non contacting lift-off type seals as well as liquid lubricated seals.
• Sample valve

Options:

• Openable vessel, heated agitator, machined vessel, CIP system
• Supplemental microwave heating to reduce time required for drying.
• Pressure proof versions, aseptic and steam sterilizable versions, DQ, IQ, OQ qualification.
• PLC controls, autonomous or slaved to DCS, MCC
