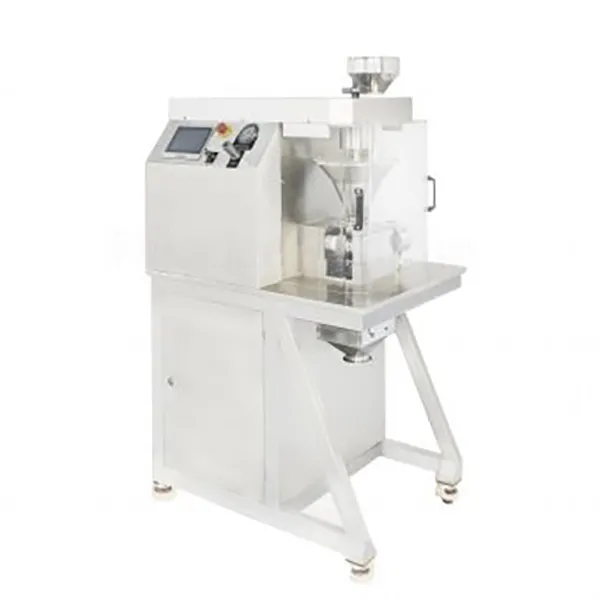

Dry Granulator Machine RawCN-Gra D10/100
Dry granulators are used for dry granulation process. The dry granulation process is used to form granules without using a liquid solution because the product to be granulated may be sensitive to moisture and heat. Forming granules without moisture requires compacting and densifying the powders. In this process, the primary powder particles are aggregated under high pressure.
The roller compactor (granulator-compactor) uses an auger-feed system that will consistently deliver powder uniformly between two pressure rollers. The powders are compacted into a ribbon or small pellets between these rollers and milled through a low-shear mill. When the product is compacted properly, then it can be passed through a mill and final blend before tablet compression.
Description
Specification
Model
RawCN-Gra D10
RawCN-Gra D100
Capacity (kg/h)
1 -10
50-100
Granularity (mm)
0.2-2
Roller Size (mm)
φ100*35
φ180*60
Maximal Pressure Force (Bar)
120
Screw Feeder Rotating Speed (Rpm)
10-60
20-120
Maximal Granulating Rotating Speed (Rpm)
200
Maximal Roller Speed (Rpm)
10
16
Power (KW)
3
8
Weight (KG)
350
1500
Dimensions L*W*H (mm)
760*800*1650
1500*1100*1980
