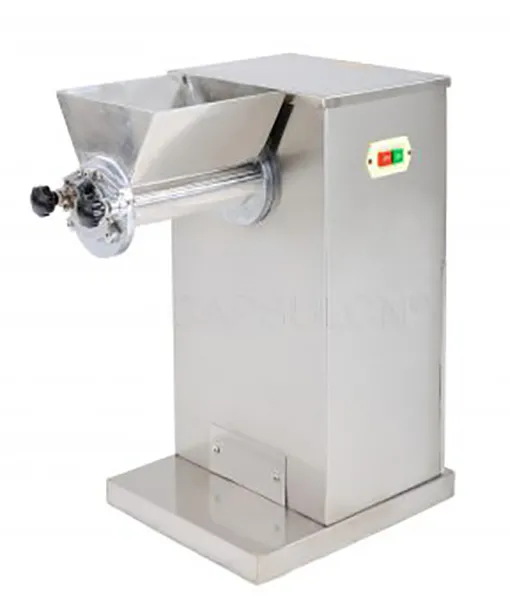

Vibrating Granulator YK Series

Vibrating Granulator YK Series

This machine is used mainly in such trades as pharmacy, chemical industry, food, pottery and plastics extensively, making moist powder material particle. Make cylinder swing reciprocatly, extruding material from screen mesh for granulation. It also can be used for crushing the agglomerate materials into small granules directly.

Description

It can be used for crushing the agglomerate materials into small granules directly.
It is very suitablefor material of high viscidity.

Specification

Model	YK60	YK90	YK160
Capacity	20~30kg/h	50~100kg/h	200~300kg/h
Cycle Times	46 time/min	50 time/min	55 time/min
Feed Port	209*212mm	300*280mm	408*380mm
Motor	0.55kw	0.75kw	2.2kw
Dia. Of Barrel	60mm	90mm	160mm
Rang of Wave	＞360°	＞360°	＞360°
Dimensions	460x550x570mm	460x750x840mm	950x560x1240mm
Weight	55kg	150kg	360kg
