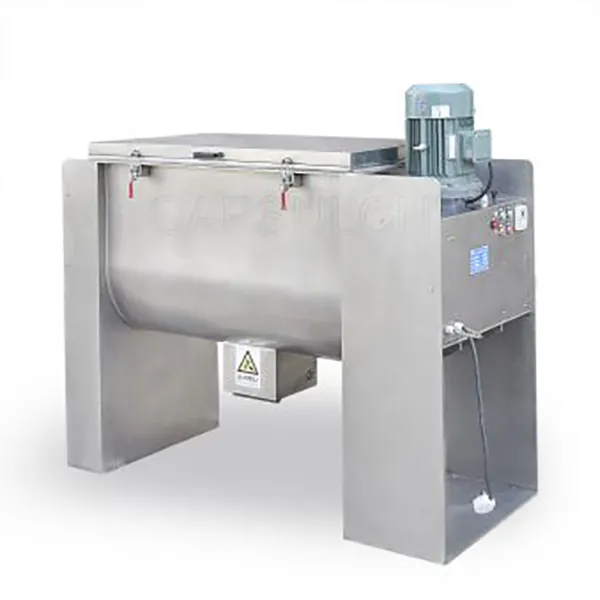

Powder Mixer Ribbon Mixer WLDH1000-4000
Ribbon Blenders consist of a U-shaped horizontal trough, transmission parts and ribbon agitating blades which usually have double or triple layers with outside screw gathering the material from sides to center and inside screw transmitting the material from center to sides to form convection mix and a specially fabricated ribbon agitator.
The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction. The ribbons rotate at approx. 300 fpm moves materials both radially and laterally to insure thorough blends in short cycle times.
Ribbon blenders are commonly used in nutraceutical, chemical, food and related industries. It is excellent for mixing both wet and dry products.
Description
Specification
Model
Total Volume(L)
Load Coefficient
Power(KW)
Dimensions(mm)
Weight (kg)
WLDH-100
100
0.4-0.8
3
1190x740x770
330
WLDH-300
300
4
2030x630x980
720
WLDH-500
500
7.5
2320x730x1130
980
WLDH-1000
1000
11
2800x920x1320
1700
WLDH-1500
1500
3180x1020x1550
1800
WLDH-2000
2000
15
3310x1120x1640
2100
WLDH-3000
3000
18.5
3750x12290x1820
WLDH-4000
4000
22
4220x1400x1990
3980
WLDH-5000
5000
4220x1500x2100
4620
WLDH-6000
6000
30
4700x1610x2260
6180
WLDH-8000
8000
37
4420x2150x2470
8200
WLDH-10000
10000
45
5520x2960x2720
8920
